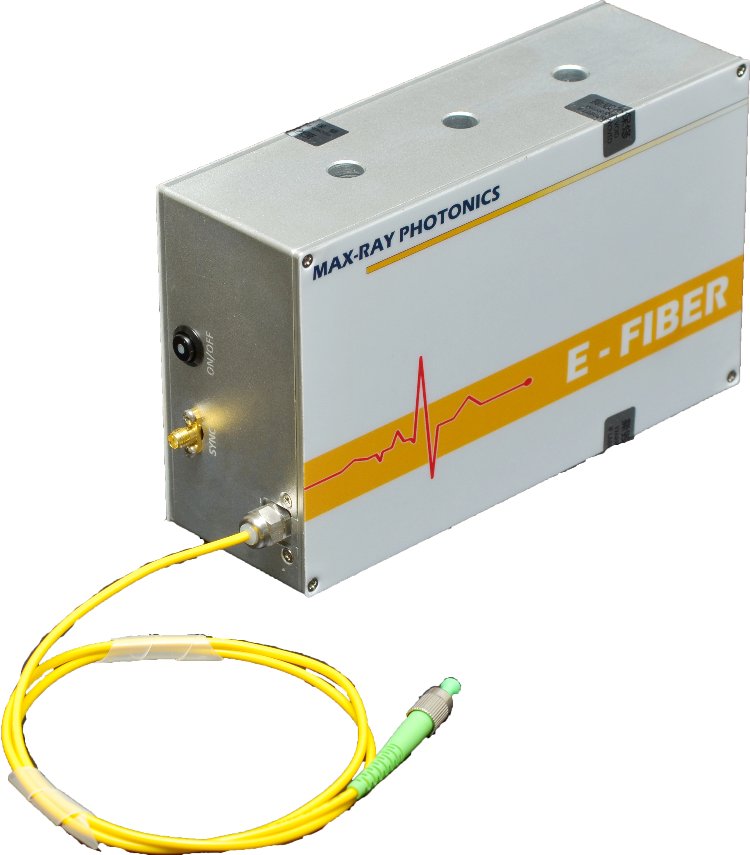

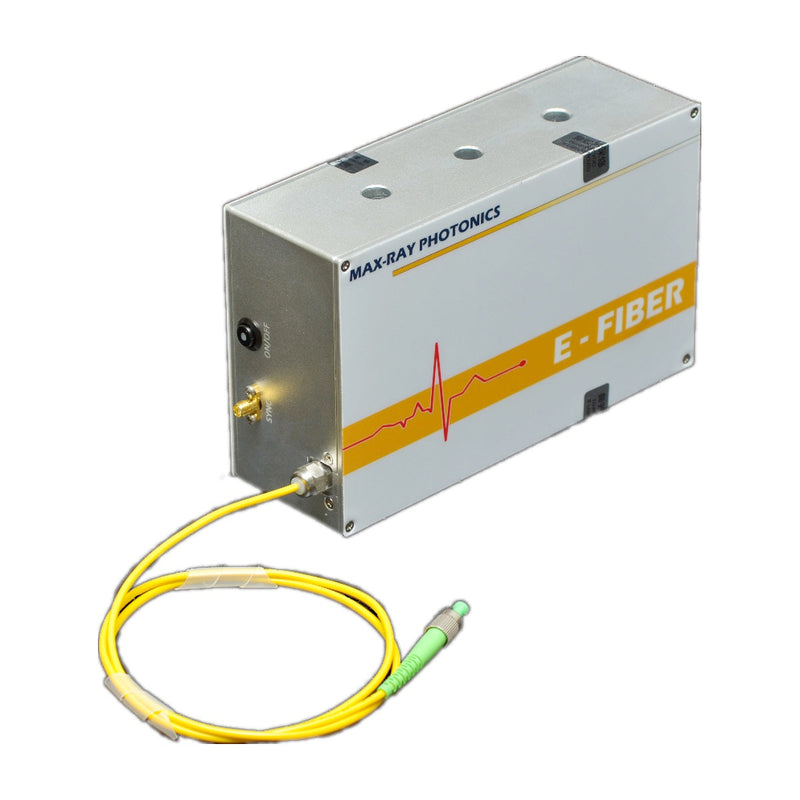

1560nm High Repeatition rate Femtosecond Pulse Fiber Laser
MR Photonics

1560 nm High Repetition Rate Femtosecond Fiber Laser, 200 MHz and above, up to 200 mW

MR-FSL-1560-HR200
Contact for pricing
Contact Sales

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The E-Fiber series of ultrafast lasers incorporate the latest femtosecond laser technology, utilizing high-performance rare-earth fibers as the working medium. Combined with high-precision dispersion compensation technology and an active servo system, they achieve stable output of high repetition rate femtosecond pulse lasers in the 1560nm wavelength band. With one-button auto-start, they ensure long-term stable operation and are maintenance-free. These lasers are characterized by extremely narrow laser pulses and high peak power, making them widely applicable in fields such as optical frequency combs, supercontinuum generation, terahertz (THz) technologies, and more. Customization of parameters including pulse width, power, repetition rate, and others, is available upon request.

Features & Applications

  • Pulse Duratio50~500 fs
  • RepetitioRate200MHz~1GHz Customizable
  • Robust and reliable
  • Compact and turnkey
  • Applications
  • Optical frequency comb
  • Supercontinuum generation
  • Ultrafast Optics
ModelsSpecification
Wavelength (nm)1560±10
Optical spectrum width (nm)20
Pulse Duration (fs)50 ~ 500
Output Power (mW)1 ~ 200
Power Instability< ±1%
Repetition Rate (MHz)≥ 200
Repetition Rate Instability (Hz)< 200
Pulse Energy (nJ)> 1
PolarizationLinear polarization
FiberPM1550，FC/APC
Warm time (min)< 1
Pulse Duration: Customizable
Output Power: Customizable
Repetition Rate: Customizable 200MHz~1GHz
Fiber: Slow axis alignment

Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
