25 mm Single-axis Linear Translation Stage with Standard Micrometer Head LS90-25R1
LS90-25R1$322.80
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

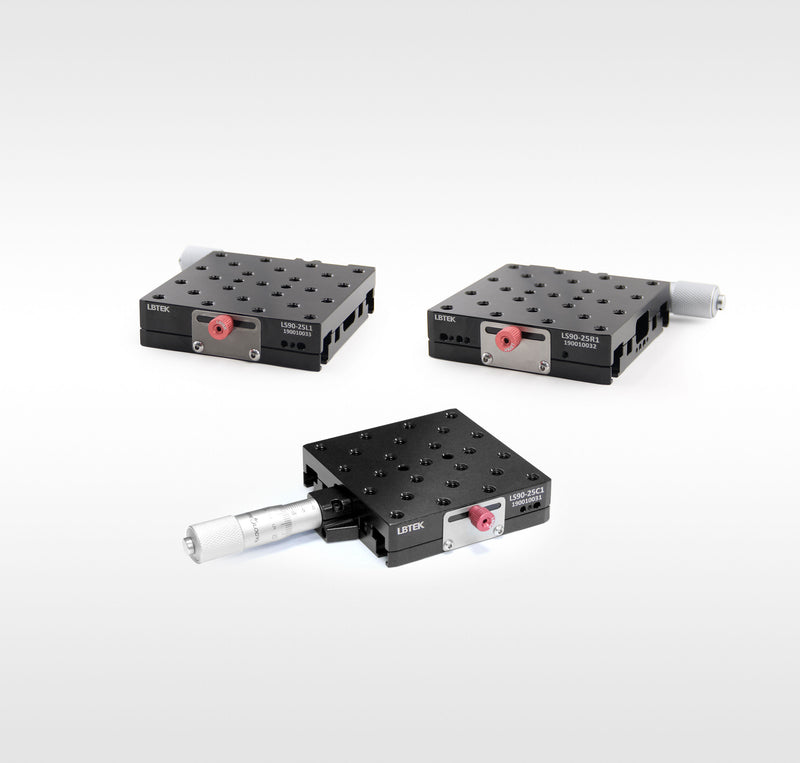

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with a micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 90 mm × 90 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.
Key Features
- Single-axis drive with standard micrometer head;
- Stage size: 90 mm × 90 mm;
- Travel: 25 mm;
- Minimum graduation: 10 μm;
- Available in three drive types: end direct drive, left-side drive, and right-side drive;
Application
The optical component is mounted on a single-axis linear translation stage.
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
