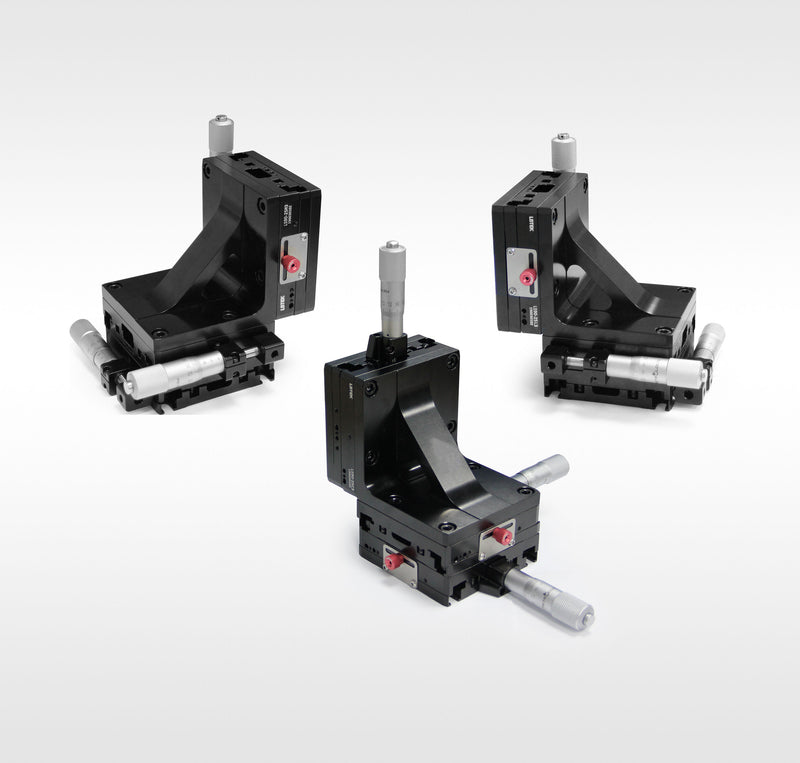

25 mm XYZ-axis Linear Translation Stage with Standard Micrometer Heads LS90-25R3
LS90-25R3$927.35
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The XYZ-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XYZ-axis direction drive with a micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 90 mm × 90 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.
Key Features
- XYZ-axis drive with standard micrometer heads;
- Stage size: 90 mm × 90 mm;
- Travel: 25 mm
- Minimum graduation: 10 um;
- Available in three drive types: end direct drive, left-side drive, and right-side drive
Application
The optical component is mounted on an XYZ-axis linear translation stage.
