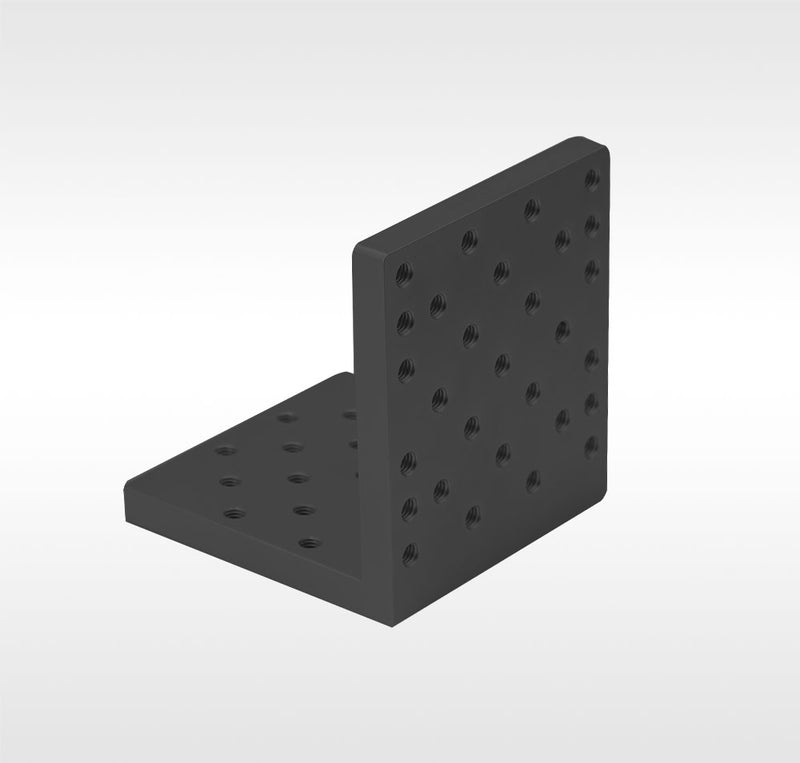

L-shaped Right Angle Adapter EM-LSS90VG

The 90 mm horizontal-lifting right-angle adapter plate from LBTEK is designed for 25 mm travel manual linear translation stages, converting vertical Z-axis mounting into horizontal lifting configurations. The vertical face of the right-angle plate features four M6 tapped holes and two Ø5 mm dowel pin holes, allowing installation of L-shaped right angle plate onto Z-axis configured stages using four M6 socket head cap screws and two Ø5 mm dowel pins (Note: The flat adapter plate pre-installed on the stage must be removed prior to mounting). The plate can be installed with its horizontal surface facing upward or downward as required. The horizontal mounting surface measures 90 mm × 90 mm with an array of twenty-nine M6 tapped holes (hole spacing: 12.5 mm/25 mm).
