30 mm coaxial mounting plate OPM-12.5AS

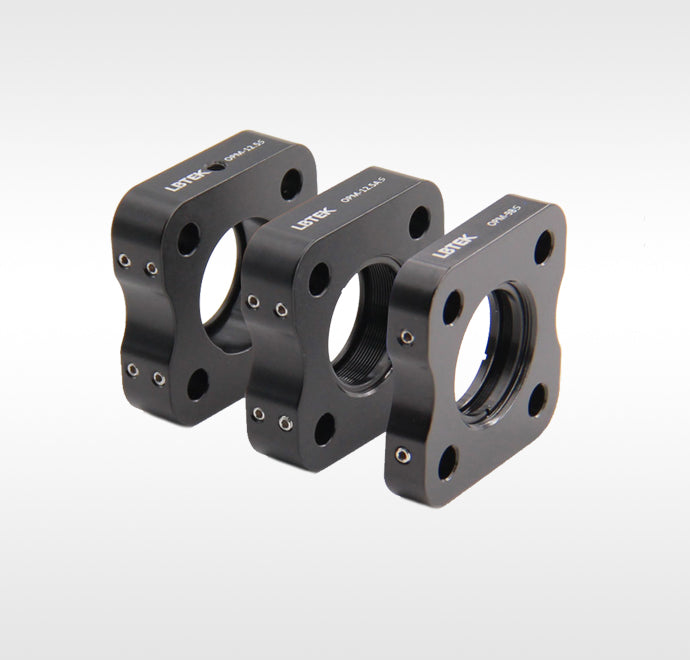

LBTEK 30 mm coaxial mounting plate is suitable for mounting Ø25.4mm optical components. The OPM-12.5 and OPM-12.5S models feature light wall mounting holes with top set screws for fixation. The OPM-12.5A and OPM-12.5AS models come with SM1 threaded mounting holes and limiting steps, including one SM1R retaining ring. The OPM-12.5BS model has an SM1 threaded through-hole and includes two SM1R retaining rings. The bottom is equipped with M4 threaded holes for connecting to mounting rods. Each coaxial rod through-hole has two locking screws on the side, which can be tightened with a 1.5 mm hex key.
