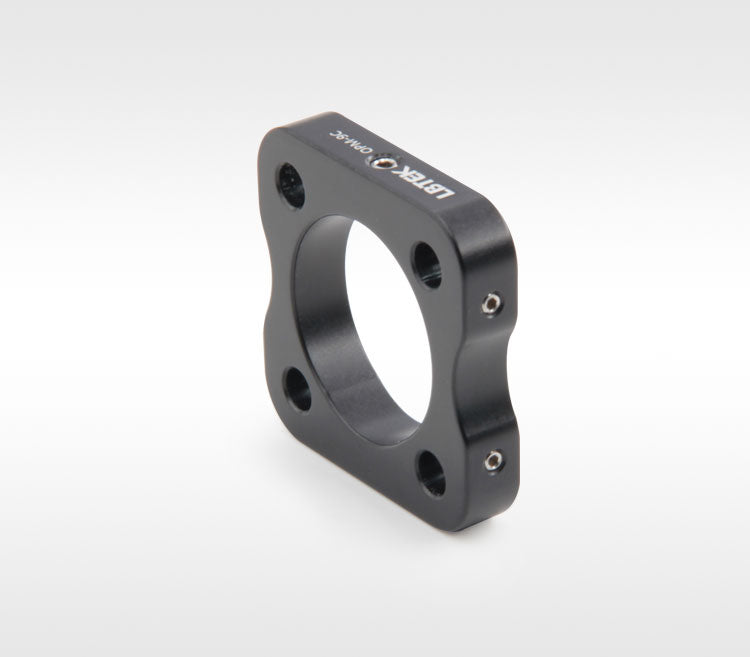

30 mm coaxial mounting plate — Model OPM-9C
✔ In Stock — Ships Today
LBTEK 30 mm Coaxial Mounting Plate OPM-9C with a thickness of 9 mm, featuring a smooth-walled hole suitable for mounting lens sleeves. The bottom includes an M4 threaded hole for connecting to rods, and 4 coaxial rod through-holes compatible with 30 mm coaxial systems. Each side has 1 locking screw that can be tightened using a 1.5 mm hex wrench.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Thickness: 9 mm
- Compatible with SM1 lens tubes
Application
30 mm coaxial mounting plate for lens sleeve installation
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial mounting plate (11 variants)
