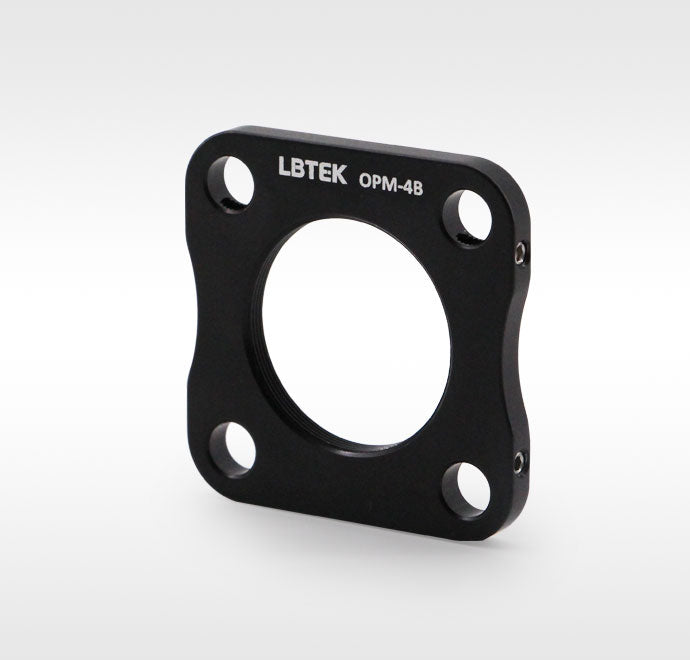

30 mm coaxial mounting plate — Model OPM-4B
✔ In Stock — Ships Today
The OPM-4B provided by LBTEK features a thinner design with a thickness of only 4 mm, making the optical system more compact. It has an SM1 threaded hole in the center for expanding other mechanical components with SM1 threads, such as fiber optic flanges. The four coaxial rod through-holes are compatible with 30 mm coaxial systems, and each side is equipped with a locking screw that can be tightened using a 1.5 mm hex wrench.
Key Features
- Material: 6061-T6 aluminum alloy
- SM1 threaded through hole
- Thickness 4 mm
- Cannot be mounted on a connecting rod
Application
Install fiber optic through fiber optic flange
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial mounting plate (11 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial mounting plate OPM-RMSB |
OPM-RMSB
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-12.5BS |
OPM-12.5BS
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-12.5S |
OPM-12.5S
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-12.5AS |
OPM-12.5AS
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9MB |
OPM-9MB
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9C |
OPM-9C
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9BSK |
OPM-9BSK
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9BS |
OPM-9BS
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9RA |
OPM-9RA
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-9RB |
OPM-9RB
| — | — | — | View |
| 30 mm coaxial mounting plate OPM-4B Current |
OPM-4B
| — | — | — |
