30 mm coaxial system mirror mount AMC-1A
AMC-1A$121.23
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

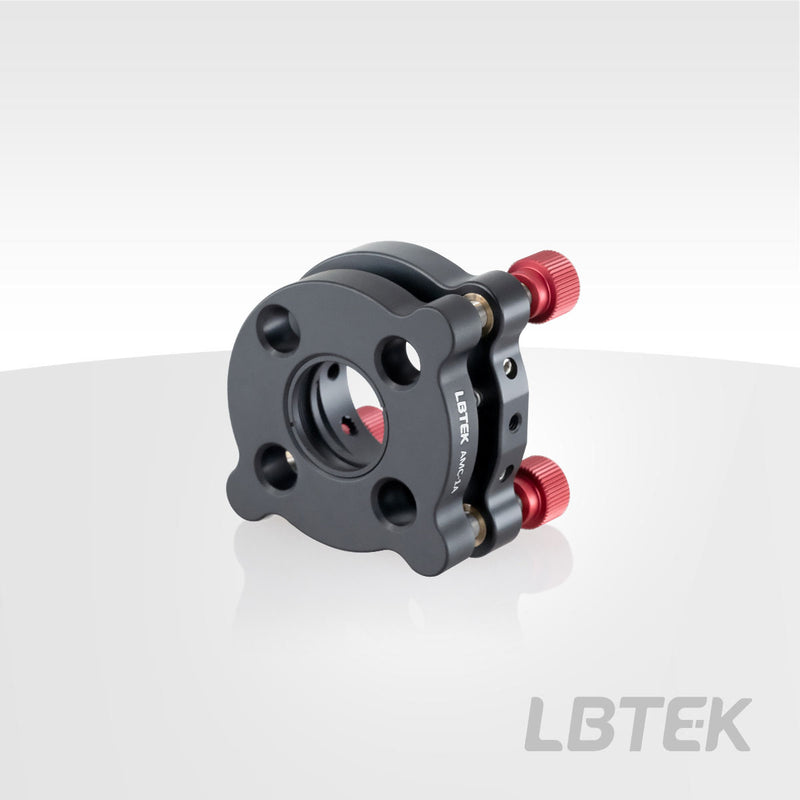

30 mm coaxial system mirror mount — Model AMC-1A
✔ In Stock — Ships Today
The AMC-1A features an SM1 threaded through-hole and comes with two SM1R retaining rings. It is suitable for mounting optical components with a maximum diameter of Ø25.4 mm and thickness of 5.5 mm. The SM1 threading is compatible with all LBTEK mechanical components featuring SM1 threads.
Key Features
- Equipped with 3 adjusters for regulating deflection and tilt angles
- Linear movement range ±3 mm, pitch angle ±5°, adjustment accuracy 0.32°/revolution
- Compatible with 30 mm coaxial systems
- Optical component mounting method: retaining ring
Application
The laser is fixed on the mirror mount.
| Material | 6061-T6 Aluminum Alloy |
| Applicable optical element diameter | Ø25.4 mm |
| Maximum applicable thickness of optical components | 5.5 mm |
| Clear Aperture | Ø23.0 mm |
| Breadboard size | ±3 mm |
| Adjustable pitch/yaw angle range | ±5° |
| Regulator Specifications | M6×0.25 |
| Number of regulators | 3 |
| Compatible Slide Width | SM1 threaded through hole |
| Installation thread hole specifications | M4 |
| Degrees of freedom (displacement) | 3 |
| Surface Treatment | Black anodized |
| Optical component mounting method | Dual snap ring fixation |
| Maximum applicable thickness of optical components | SM1R/2 pcs |
| Adjustment accuracy | 0.32°/revolution |
Product Family: 30 mm coaxial system mirror mount (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial system mirror mount TXY1SM1 |
TXY1SM1
| — | — | — | View |
| 30 mm coaxial system mirror mount AMC-1B |
AMC-1B
| — | — | — | View |
| 30 mm coaxial system mirror mount AMC-1A Current |
AMC-1A
| — | — | — |
