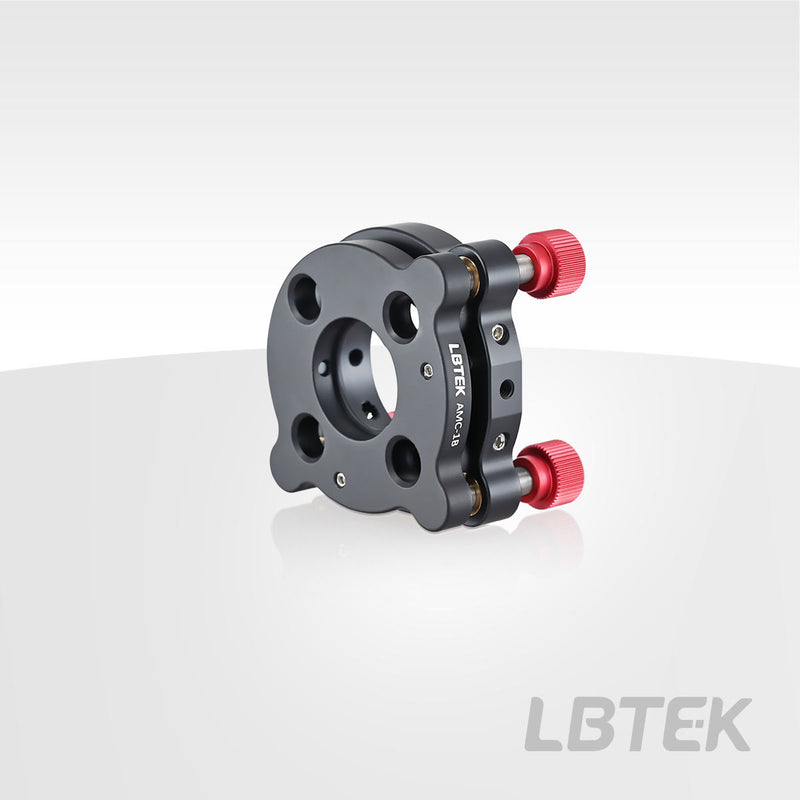

30 mm coaxial system mirror mount — Model AMC-1B
✔ In Stock — Ships Today
The AMC-1B features a light wall hole with Ø25.4 mm, secured by an M4 set screw (compatible with a 2 mm hex wrench) for fixing optical components. It is suitable for mounting optical elements with Ø25.4 mm and a minimum thickness of 3 mm.
Key Features
- Equipped with 3 adjusters for regulating deflection and tilt angles
- Linear movement range ±3 mm, pitch angle ±5°, adjustment accuracy 0.32°/rev
- Compatible with 30 mm coaxial systems
- Optical component fixation method: Set screw
Application
AMC series products are commonly used for mounting optical components such as mirrors.
| Clear Aperture | 23.5 mm |
Product Family: 30 mm coaxial system mirror mount (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial system mirror mount TXY1SM1 |
TXY1SM1
| — | — | — | View |
| 30 mm coaxial system mirror mount AMC-1B Current |
AMC-1B
| — | — | — | |
| 30 mm coaxial system mirror mount AMC-1A |
AMC-1A
| — | — | — | View |
