30 mm coaxial system mirror mount — Model TXY1SM1
✔ In Stock — Ships Today

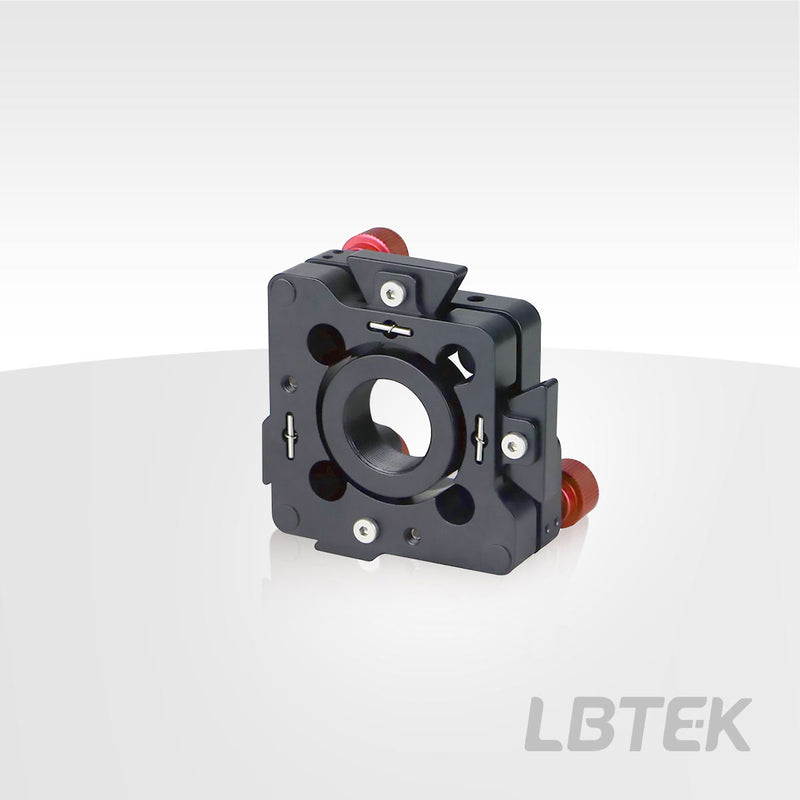

LBTEK 30 mm Coaxial System Mirror Mount with Slide Plate TXYSM1, featuring a central SM1 (1.035"-40) threaded mounting hole. The included SM1R retaining ring allows direct mounting of optical components with a diameter of 25.4 mm and a maximum thickness of 7.5 mm. The slide plate provides ±1 mm coarse adjustment in the XY directions. The mount is equipped with three adjusters, each with a precision of 0.32° per revolution, enabling ±4° deflection and tilt adjustment of the front panel, as well as a maximum ±3 mm linear adjustment range. All adjustments can be individually locked.
Key Features
- The stage provides ±1 mm coarse adjustment in X and Y directions
- Pitch/tilt range ±4°, linear travel range ±3 mm
- Compatible with 30 mm coaxial systems
- Optical component mounting method: retaining ring
Application
30 mm coaxial system mirror mount installed on an optical post
| Clear Aperture | 23.0 mm |
No CAD drawings available for this product.
Product Family: 30 mm coaxial system mirror mount (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial system mirror mount TXY1SM1 Current |
TXY1SM1
| — | — | — | |
