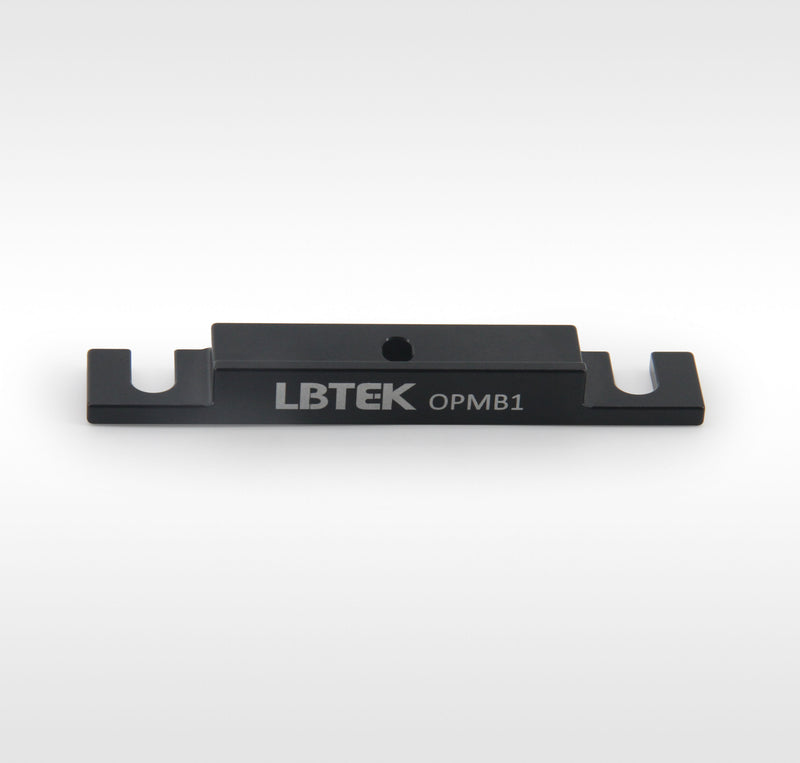

30 mm coaxial system mounting base — Model OPMB1
✔ In Stock — Ships Today
The 30 mm coaxial plate mount provided by LBTEK features two M6 slotted holes and one M4 countersunk slotted hole, designed for directly securing 30 mm coaxial plates to optical tables or breadboards. Purchasing the LBTEK OPMB1 right-angle adapter plate includes two M6 hex socket head cap screws with M6 washers, as well as one M4 hex socket head cap screw.
Key Features
- Main material: 6061-T6 aluminum alloy
- Black anodized
- 2 M6 threaded slots, 1 M4 countersunk threaded slot
Application
OPMB1 is commonly used for direct mounting 30 mm coaxial plates onto optical tables or breadboards.
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Mounting hole | Two M6 threaded slots, one M4 countersunk slot |
| Overall dimensions | 95 mm×15 mm×11 mm |
| Attribute 1113 | 0.04 |
| Vacuum Hardware | Two M6 hex socket head cap screws, one M4 hex socket head cap screw |
