50 mm Single-Axis Linear Translation Stage with Surface Dovetais LS75-50C
LS75-50C$673.84
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

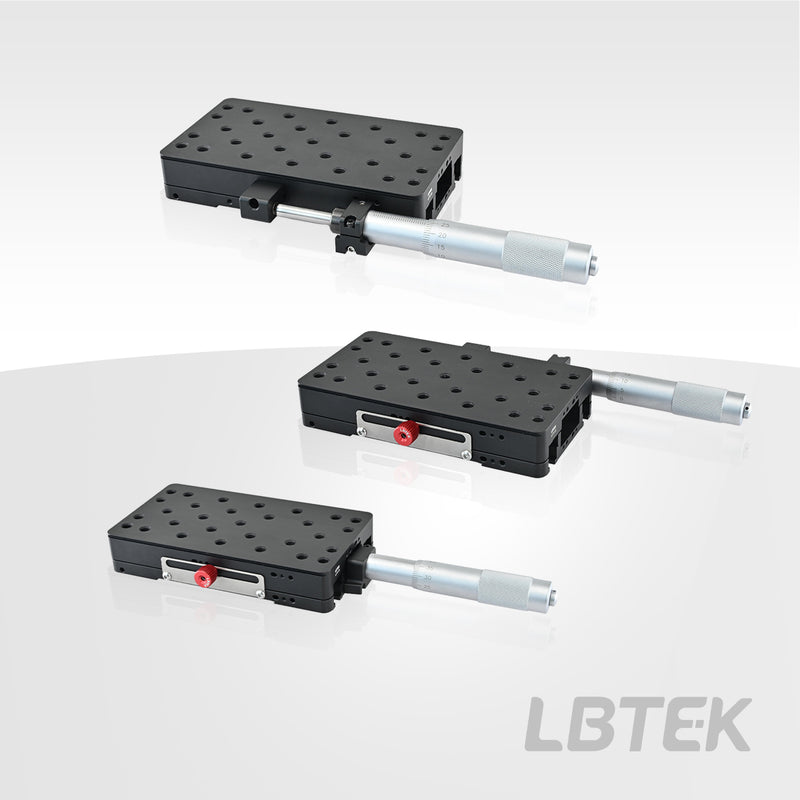

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All models feature single-axis drive with a micrometer head driver, providing 50 mm travel and 10 μm minimum micrometer graduation. The stage surface measures 75.7 mm × 140 mm with M6 tapped holes. The base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws. Both the base plate and top plate feature quick-connect dovetails, enabling flexible assembly of multi-axis translation stages.
Key Features
- Single-axis drive with standard micrometer head, featuring quick-connect dovetails on both top and base plates;
- Stage size: 75.7 mm × 140 mm;
- Travel: 50 mm;
- Minimum graduation: 10μm;
- Available in three drive types: end direct drive, left-side drive, and right-side drive;
Application
The stage top and bottom surfaces feature quick-connect dovetails.
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
Product Family: 50 mm Travel Manual Linear Translation Stage (12 variants)
