Base Plate with Rotation Adjustment LS75-50-D
LS75-50-D$30.59
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

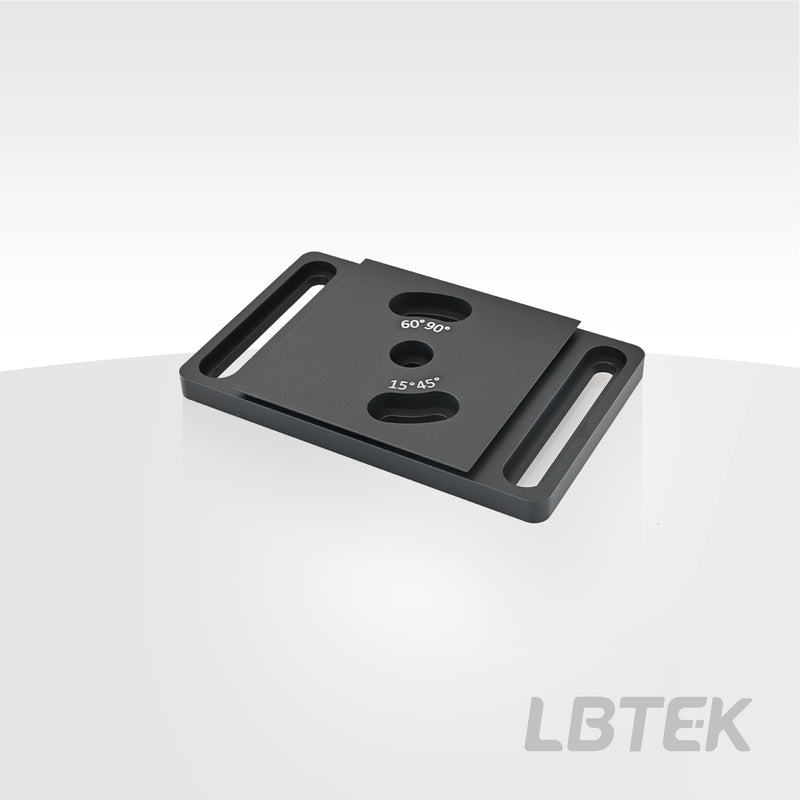

The LS75-50-D base plate from LBTEK features two orthogonal dovetails on its upper surface, enabling mounting of LS75-50-series translation stages from two directions. A central M6 countersunk hole and two radial slots allow coarse angular adjustment relative to the platform's M6 tapped hole array. If the translation stage is aligned with the platform's tapped hole array, the two M6 slotted countersunk holes on the edges can be used for installation.
Key Features
- For coarse rotation or translation to align the stage with the platform hole array;
- Orthogonal dovetail block, allows mounting the stage from two directions;
- Compatible with LS75-50-series stages;
Application
The orthogonal dovetail on the upper surface of the LS75-50-D base plate allows for mounting the translation stage from two directions.
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
Product Family: 50 mm Travel Manual Linear Translation Stage (12 variants)
