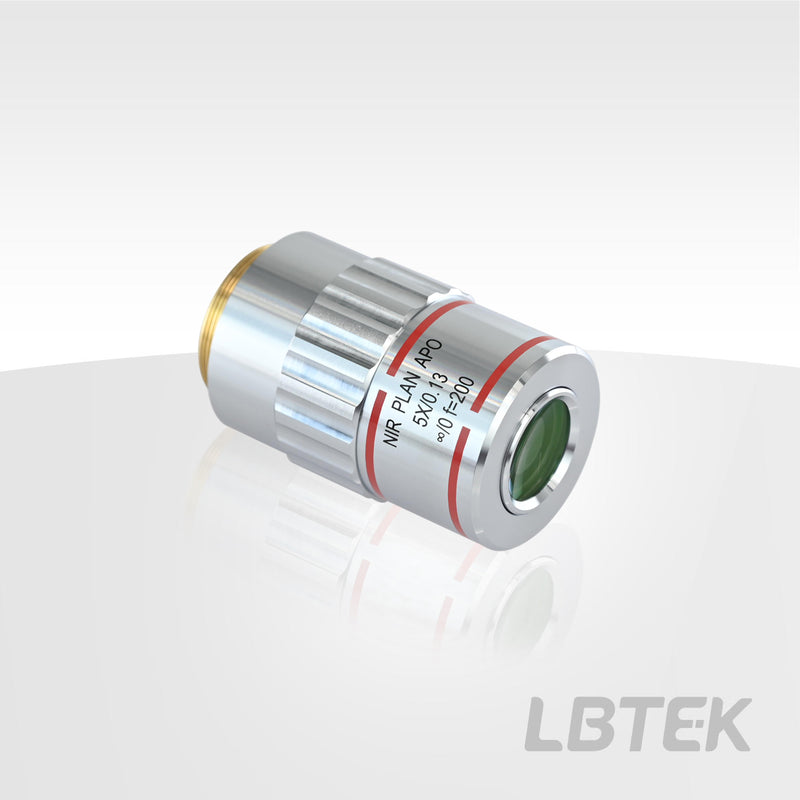

95 mm Plan Apochromat Objective, 500-1200 nm PLNAPO5XNIR

Name: 95 mm Plan Apochromat Objective, 500-1200 nm PLNAPO5XNIR
Brand: LBTek
SKU: PLNAPO5XNIR
Price: 1091.03 SGD
Availability: InStock

PLNAPO5XNIR

$1,091.03

In Stock

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement

RoHS REACH

LBTEK offers plan apochromat objectives with a range of 500 nm to 1200 nm. These infinity-corrected plan apochromat objectives are available in 5X and 10X magnifications and feature an extra-long working distance. Each objective features M26 mm × 0.706 mm external threads and can be mounted on internally SM1-threaded mounts using the LBTEK SM1-M26A thread adapter.

Key Features

Long working distance
Plan apochromatic design
Working wavelength: 500-1200 nm

Application

Mount the objective onto the TXY1S using the threaded adapter SM1-M26A

No specifications available for this product.

No documents available for this product.

No CAD drawings available for this product.

Product Family: Long Working Distance Plan Apochromat Objectives (20 variants)
