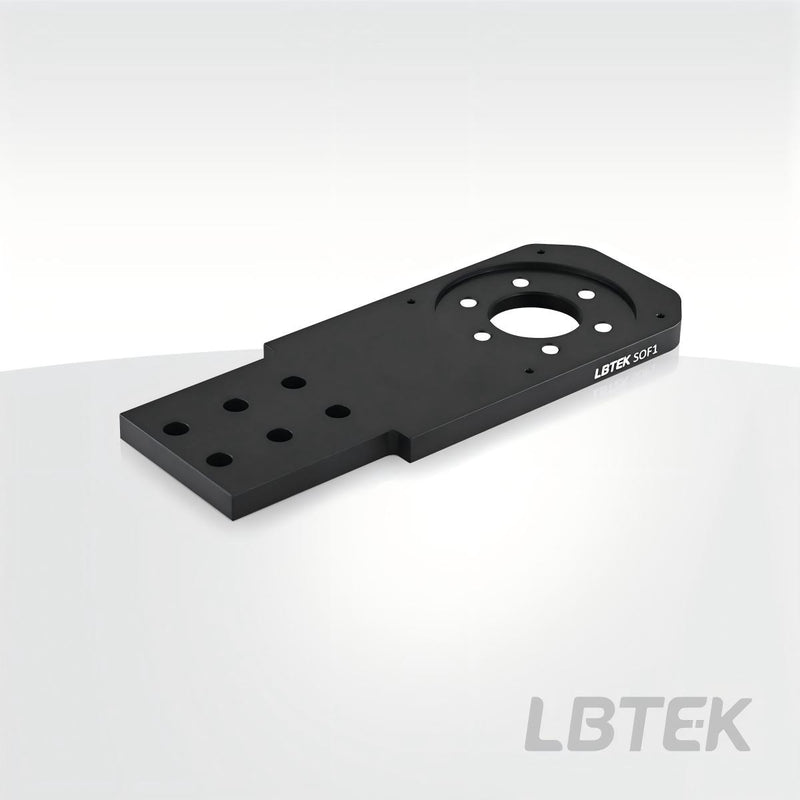

Accessories and extensions for the main bracket SOF1

The LBTEK single objective mounting bracket allows for the installation of a single objective lens in the optical path at a distance of 196.59 mm from the main support structure. It is designed to directly accommodate objective lenses with an M32 x 0.75 external thread. Alternatively, our microscope adapters can be used to convert the M32 x 0.75 thread to other industry-standard objective lens threads, such as M26 x 0.706, RMS thread, and others.

With a thickness of only 9.5 mm, the mounting bracket maximizes available space in the Z-direction, facilitating the installation of other microscope modules. It features four M3 threaded holes compatible with a 60 mm coaxial system. Additionally, six M4 countersunk holes on the bracket enable easy mounting onto manual focusing stages (sold separately by our company). The magnet on the upper part of the bracket is used to attach the light-blocking bellows to the main support structure with an epi-illumination arm, creating a light-tight optical path between the bracket and the epi-illumination arm to prevent interference from external light.
