Sliding Dual-Objective Nosepieces DMA
DMA$167.87
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

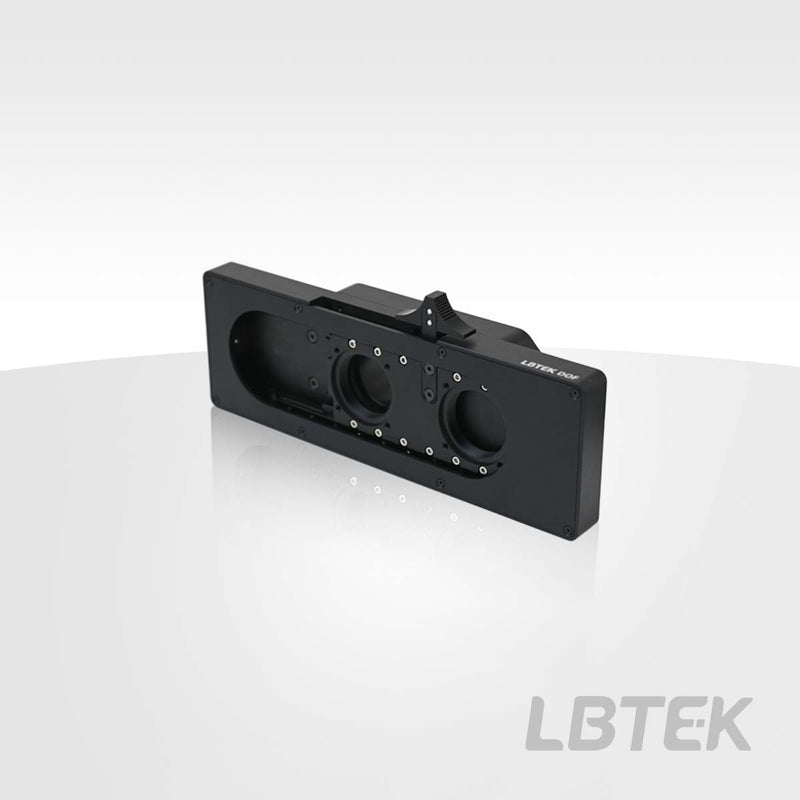

The LBTEK Dual-Objective Nosepiece is constructed from 6061-T6 aluminum alloy for high precision and excellent rigidity. It features two M32 x 0.75 threaded holes with a center distance of 63.5 mm, accommodating objectives of varying magnifications. For objectives with other thread sizes, LBTEK thread adapters are available, or you may contact technical support for custom installations.
Key Features
- Installing two objectives in the experimental system
- Two M32×0.75 internal threads included
- Manual switching
Application
The Dual-Objective Nosepiece is typically equipped with two objectives of different magnifications.
| Attribute 2729 | DOF |
| Surface Treatment | Black anodized |
| Material | 6061-T6 aluminum alloy |
| Size | 195.7 mm×76.2 mm×11.7 mm |
| Mounting Hardware | M4×8 pointed set screws/3 pcs, M3×6 hex socket head cap screws/6 pcs |
| Weight | 0.298 kg |
| Compatibility | M3 |
No documents available for this product.
No CAD drawings available for this product.
