Accessories and extensions for the main bracket SOFA-A

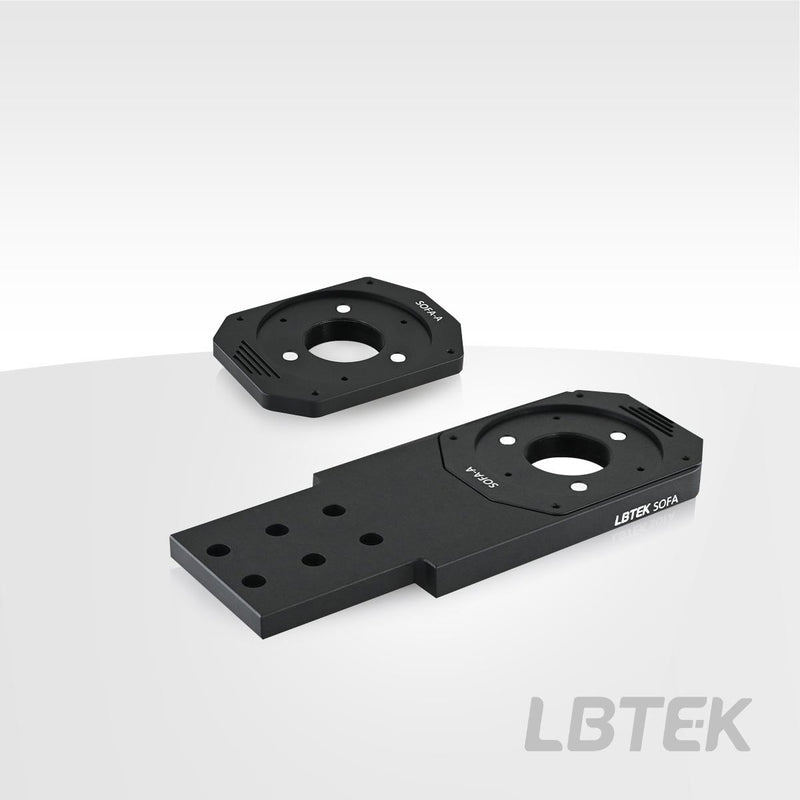

LBTEK Adjustable Mount can install a single objective lens in the optical path at a distance of 196.59 mm from the main bracket. The mount consists of one mounting arm and one detachable magnetic objective lens mount, allowing users to quickly switch objective lenses without disassembling the entire mount. The ball + V-groove design on the mounting arm and the detachable magnetic objective lens mount provides dynamic positioning functionality, enabling sliding in and out for quick replacement of the objective lens mount, with a repeat positioning accuracy of < ±10 µm in the X and Y axes. The mount has a thickness of only 12.7 mm, maximizing space in the Z-direction to facilitate the installation of other microscopy modules. Four M3 threaded holes are compatible with a 60 mm coaxial system. Six M4 countersunk holes on the mount allow for easy installation onto a manual focusing mount (sold separately by our company).

The detachable magnetic objective lens mount (SOFA-A) can directly accommodate objective lenses with an M32 x 0.75 external thread. Alternatively, our company's microscope adapters can be used to convert the M32 x 0.75 thread to other industry-standard objective lens threads, such as M26X0.706, RMS thread, etc. Four M3 threaded holes on the mount allow for the construction of a detachable 60 mm coaxial assembly. The magnet on the upper part of the mount is used to attach the light-blocking bellows on the main bracket with an epi-illumination arm, forming a light-tight optical path between the mount and the epi-illumination arm to prevent interference from external light.
