Achromatic Depolarizers APD10-B

Achromatic Depolarizers — Model APD10-B

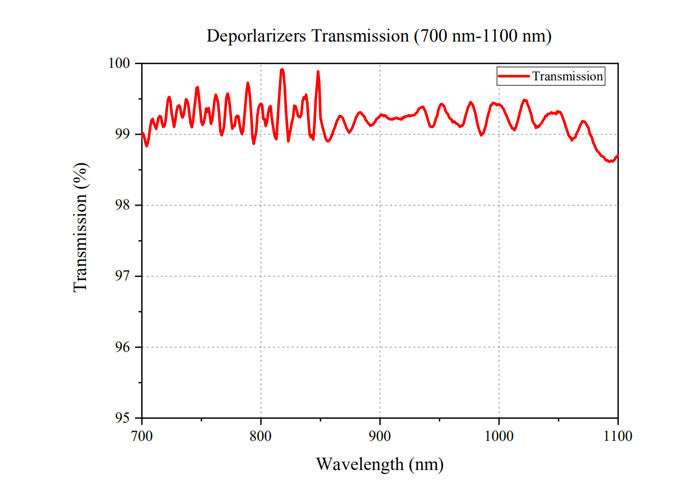

Quartz crystal achromatic depolarizer, Ø25.4 mm aperture, operating wavelength 700 nm-1100 nm, retardation λ/4, AR coating 700 nm-1100 nm.

Overview

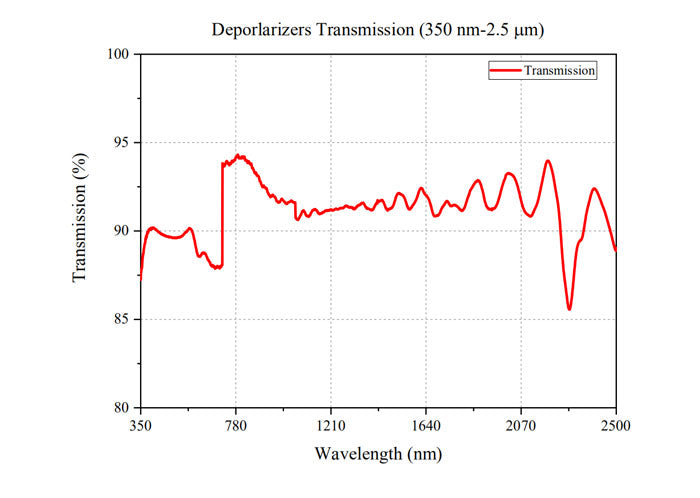

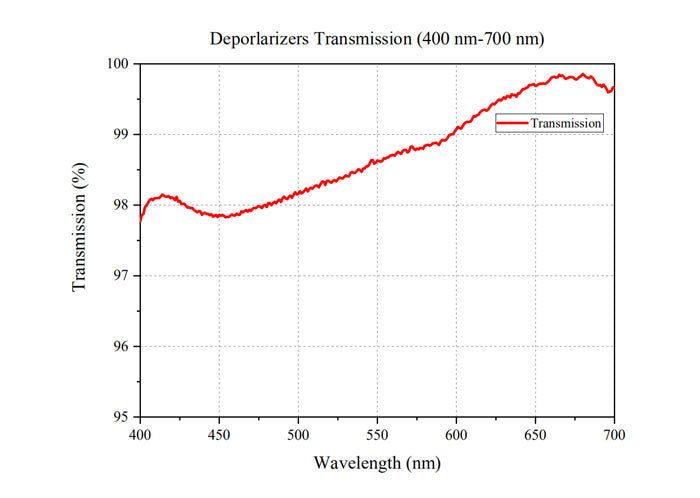

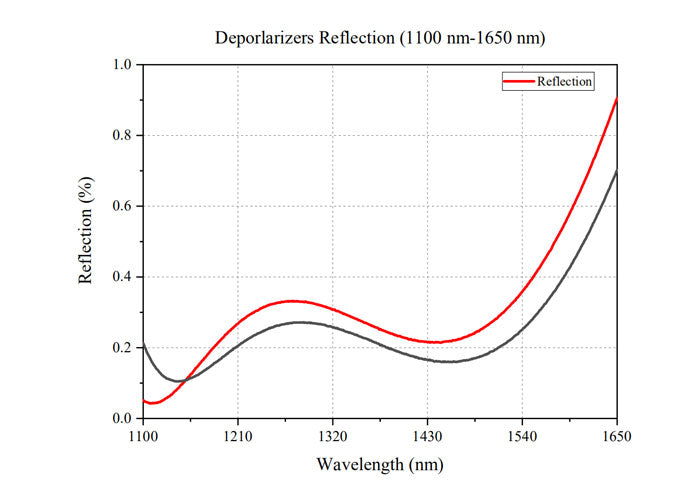

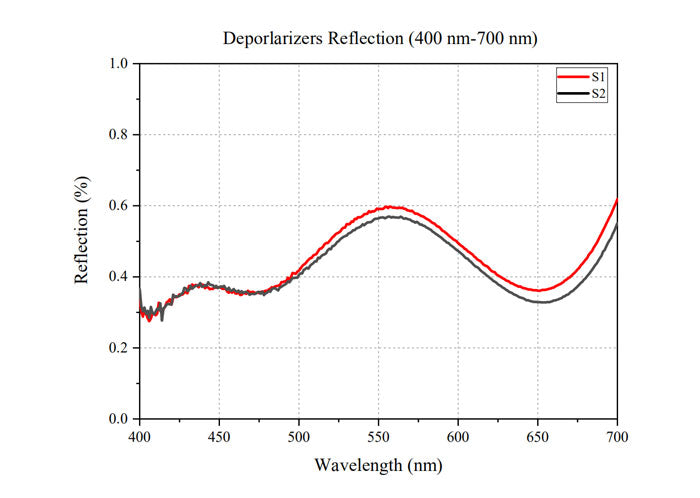

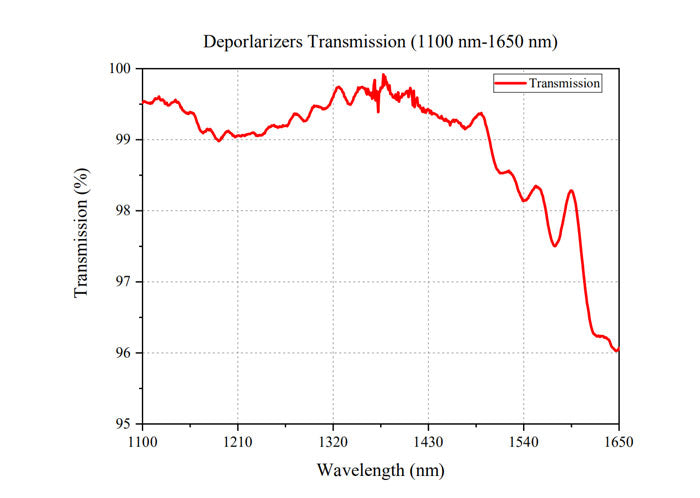

LBTEK Achromatic Depolarizers convert polarized light into unpolarized light. Each component consists of two circular quartz wedge crystals whose optical axes are at a 45° angle, with a 2:1 thickness ratio between the thick and thin wedges bonded with UV-curing adhesive. The gradient phase difference across the beam cross-section yields mixed polarization states at the output, producing the depolarization effect for both monochromatic and broadband light sources. Currently LBTEK offers uncoated (350 nm-2500 nm) and AR-coated variants for 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm.

Key Features

• Operating wavelength: 700 nm-1100 nm
• Retardation: λ/4
• Clear Aperture: 90%CA
• Diameter: Ø25.4 mm (+0.0/-0.1 mm)
• Thickness: 7.2 mm (±0.1 mm)

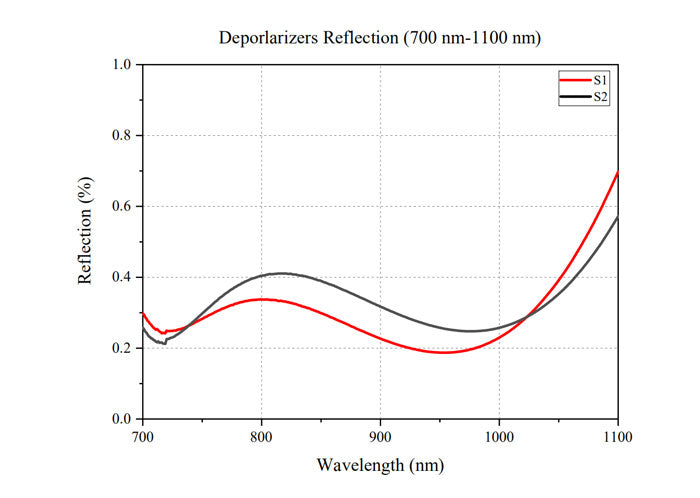

• Anti-reflective coating: Ravg<0.5%ᵃ
• Surface finish (scratches/pits): 20/10 (S/D)
• Surface Parallelism: <1 arcmin
• Wedge angle tolerance: ±0.1°
• Bevel angle: 2°
• Optical component material: Quartz crystal

Applications

• Laser processing
• Fiber-optic gyroscopes
• Fiber-optic sensors
• High-precision spectrophotometers
• Photoelectric detection technology
• Raman amplifiers
