Acousto-Optic Modulator (AOM) AOM05-780-200
AOM05-780-200Contact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Free-Space Acousto-Optic Modulator (Conduction-Cooled)

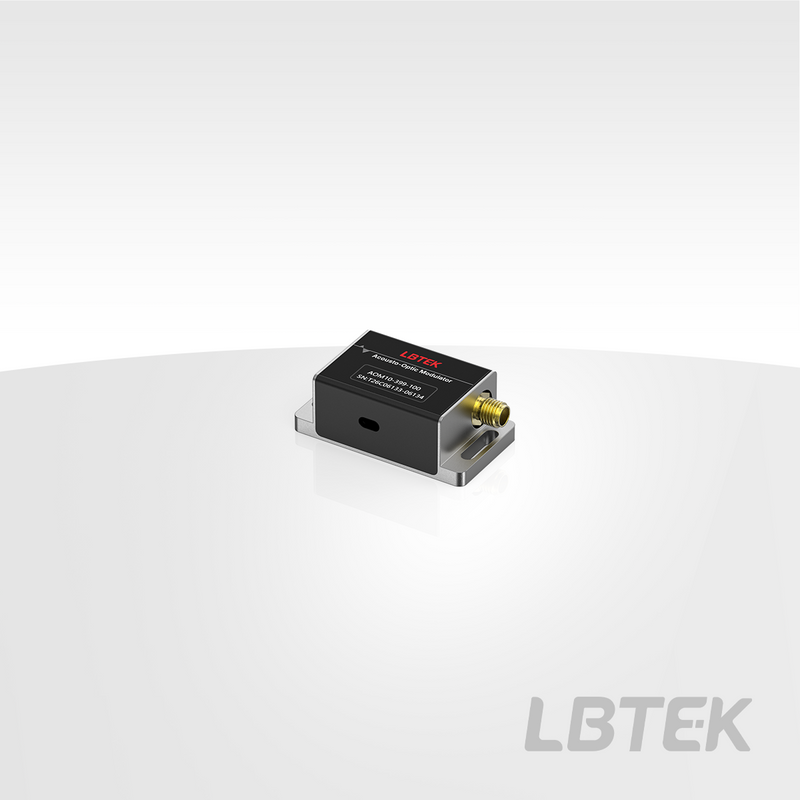

This LBTEK acousto-optic modulator operates via Bragg diffraction. It can be used as an optical switch (cyclically switching light on and off at a set frequency) or as a variable attenuator (dynamically controlling transmitted light intensity).
Compatible with multiple operating wavelengths (355-852 nm options available). The conduction-cooled design enables stable operation in continuous-wave (CW) and pulsed laser applications including laser printing, marking, material processing, medical surgery, and microfabrication.
Key Features
- Based on Bragg diffraction with first-order diffracted light separation
- High diffraction efficiency (typically >80% at center frequency)
- Configurable for use as optical switch or variable attenuator
- Matched RF driver and power supply available separately
- Custom configurations available — contact our engineering team
Typical Applications
- Laser marking and engraving
- Material processing and microfabrication
- Medical and surgical laser systems
- Ultrafast fiber laser pulse picking
- Q-switching and seed-source modulation
- Laser cooling and atomic physics experiments
- Frequency stabilization
Product Family
LBTEK's acousto-optic modulator (AOM) series products are based on the principle of acousto-optic interaction, enabling frequency shifting and amplitude modulation of laser light. They can be used as optical switches (cyclically switching light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of transmitted light).
SKU: AOM05-780-200 · Sourced from LBTEK · Distributed by WaveQuanta
| Operating Wavelength | 780±20 nm |
| Input Polarization State | Any |
| RF Signal Frequency | 200 MHz |
| Diffraction Efficiency | ≥80 % |
| Diffraction Efficiency (Full Bandwidth) | ≥60 % |
| Frequency Shift Bandwidth | ±20 MHz |
| Rise Time | 160 ns/mm |
| Diffracted Beam Separation Angle (Center Frequency) | 37.1 mrad |
| Clear Aperture | 0.5 mm |
| Extinction Ratio | >1000:1 |
| Transmittance (@operating wavelength) | ≥95 % |
| Damage Threshold | 10 W/mm<sup>2</sup> |
| Input Impedance | 50 Ω |
| VSWR | <1.3:1 |
| Drive Power | ≤2.5 W |
| RF Connector | SMA Female |
| Cooling Method | Conduction-Cooled |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
