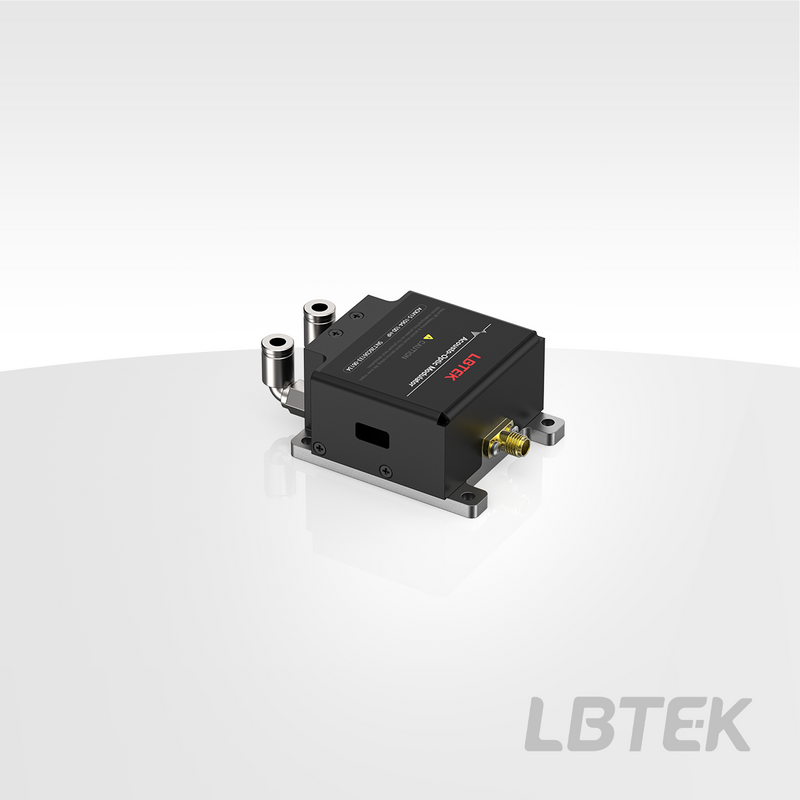

Acousto-Optic Modulator (AOM) AOM15-1064-100-HP
AOM15-1064-100-HPContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Free-Space Acousto-Optic Modulator (Water-Cooled, High Power)
High-power free-space acousto-optic modulator with water cooling. Designed to handle continuous-wave and pulsed laser power for industrial laser systems, optical switching at MHz rates, and demanding research applications requiring sustained high-power operation.
Key Features
- Based on Bragg diffraction with first-order diffracted light separation
- High diffraction efficiency (typically >80% at center frequency)
- Configurable for use as optical switch or variable attenuator
- Matched RF driver and power supply available separately
- Custom configurations available — contact our engineering team
Typical Applications
- Laser marking and engraving
- Material processing and microfabrication
- Medical and surgical laser systems
- Ultrafast fiber laser pulse picking
- Q-switching and seed-source modulation
- Laser cooling and atomic physics experiments
- Frequency stabilization
Product Family
LBTEK's acousto-optic modulator (AOM) series products are based on the principle of acousto-optic interaction, enabling frequency shifting and amplitude modulation of laser light. They can be used as optical switches (cyclically switching light on and off at a set frequency) or as variable attenuators (dynamically controlling the intensity of transmitted light).
SKU: AOM15-1064-100-HP · Sourced from LBTEK · Distributed by WaveQuanta
| Operating Wavelength | 1000-1100 nm |
| Input Polarization State | 垂直Linear光 |
| RF Signal Frequency | 100 MHz |
| Diffraction Efficiency | ≥80 % |
| Diffraction Efficiency (Full Bandwidth) | ≥60 % |
| Frequency Shift Bandwidth | ±10 MHz |
| Rise Time | 120 ns/mm |
| Diffracted Beam Separation Angle (Center Frequency) | 18.5 mrad |
| Clear Aperture | 1.5 mm |
| Extinction Ratio | >1000:1 |
| Transmittance (@operating wavelength) | ≥99 % |
| Damage Threshold | 1G W/cm²@1064nm |
| Input Impedance | 50 Ω |
| VSWR | <1.3:1 |
| Drive Power | 20 W |
| RF Connector | SMA Female |
| Cooling Method | Conduction-Cooled(Water-Cooled) |
