Aluminum Profile Slides and Accessories — Model AP25H1
✔ In Stock — Ships Today

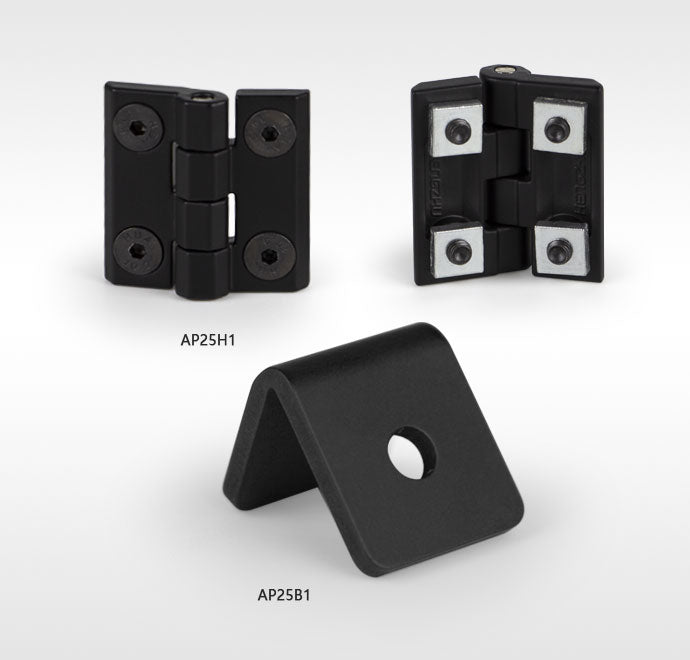

The hinge from LBTEK is designed to connect two aluminum profiles while enabling an openable/closable function for constructing operable enclosure. During assembly, loosen the nut and screw to create sufficient clearance, insert the hinge from one end of the aluminum profile, then slide it along the groove to the desired position and tighten. When used with the baffle plate AP25B1, the opening/closing angle of the enclosure can be limited to 60°.
Key Features
- Compatible with aluminum profiles for constructing openable enclosure
- Screws and nuts included
- Installation at any position within the aluminum profile groove
Application
Hinge is compatible with alminum profile slide.
No specifications available for this product.
