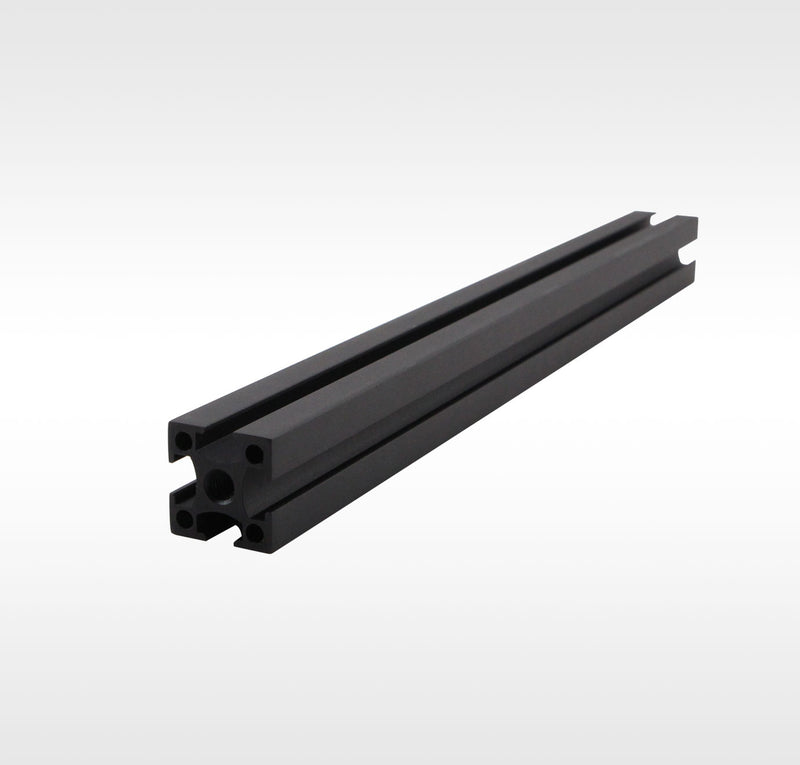

Aluminum Profile Slides and Accessories — Model AP25L375
✔ In Stock — Ships Today
The 25 mm aluminum profile slide from LBTEK allows for the construction of three-dimensional compact structures. Featuring slides on all four sides, it can be installed in combination with related profile accessories and mechanical components, enabling the sliding of mechanical components along it. For example, one can use rectangular nuts to mount mechanical components with M6 or M4 through holes onto the slide. Additionally, it can be assembled with black cardboard, breadboard, and profile accessories to form enclosures that surround optical systems.
Key Features
- Main material: 6063-T5 aluminum alloy
- Centrally-located M6 tapped hole
- Compatible with mounting mechanical components and constructing enclosures
- Length range: 225 mm~825 mm
Application
The side surface of the 25mm aluminum profile slide.
