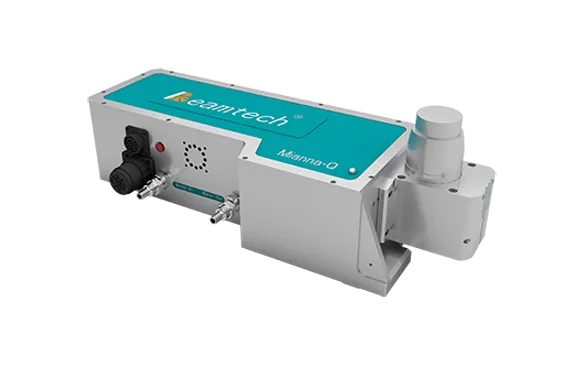

Q-switched Nd:YAG Laser
The Mianna-Q is an Q-switched Nd:YAG laser developed by our company, specifically targeting the OEM market. It features a compact structure, high efficiency, good beam profile, easy integration, and low failure rate. This series is primarily exported to Korea and the United States.
The Mianna-Q adopts a single-lamp dual-rod design, which is compact and highly efficient, saving power and cooling costs for system integration users. Additionally, the Mianna-Q is equipped with refined beam smoothing technology, correcting the central-strong and edge-weak characteristics of traditional Gaussian beams. With years of technical refinement and engineering experience, along with the practical experience of shipping over 5000 units, this series is stable, reliable, and widely recognized by customers.
Key Features
- Single pulse energy: 800mJ, 1000mJ, with an optional 2000mJ
- Dual-wavelength switchable
- Compact structure with high pumping efficiency
- Beam homogenization technology, flat-top output
- Durable and low failure rate
| Models | MQ/E | MQ | MQ/X |
|---|---|---|---|
| Repetition Rate - Single pulse | 1-10Hz | 1-10Hz | 1-5Hz |
| Repetition Rate - Double pulse | 1-5Hz | 1-5Hz | -- |
| Repetition Rate - Long pulse | 1-5Hz | 1-5Hz | -- |
| Pulse Energy - Single pulse @ 1064nm | 800mJ@1064 | 1200mJ@1064 | 2000mJ@1064 |
| Pulse Energy - Single pulse @ 532nm | 320mJ@532 | 480mJ@532 | 600mJ@532 |
| Pulse Energy - Double pulse @ 1064nm | 1200mJ@1064 | 2000mJ@1064 | -- |
| Pulse Energy - Double pulse @ 532nm | 480mJ@532 | 900mJ@532 | -- |
| Pulse Energy - Long pulse @ 1064nm | 1000mJ@1064 | 2000mJ@1064 | 2000mJ@1064 |
| Energy Stability @ 1064nm | ≤1% | ≤1% | ≤2% |
| Energy Stability @ 532nm | ≤2% | ≤2% | ≤3% |
| Pulse Width (ns) - Q mode @ 1064nm | 8ns@1064nm | 8ns@1064nm | 8ns@1064nm |
| Pulse Width (ns) - Q mode @ 532nm | 7ns@532nm | 7ns@532nm | 7ns@532nm |
| Pulse Width - Long pulse mode | 200μs | 200μs | 200μs |
| Beam Diameter | 8mm | 8mm | 12mm |
| Cooling | Air to water | Air to water | Air to water |
| Electrical Service | 220V-50/60Hz-10A | 220V-50/60Hz-10A | 220V-50/60Hz-10A |
| Power Consumption | 750W | 750W | 1000W |
Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
Mianna-Q — Q-switched Nd:YAG Laser — Dimensional Drawing (click to enlarge)
