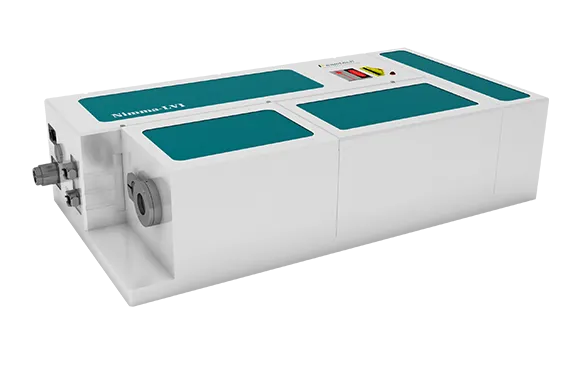

Nanosecond Pulse Laser
The 355nm wavelength and photon energy of 3.5 eV yields a threefold higher affinity for lesion tissue than for vessel endothe-lium. This means that the 355nm laser can cause photomechanical ablation in lesions while practically avoiding photochemical dissociation. Beamtech Nimma-LVI with three kinds of OEM functional laser modules, (1064nm fundamental laser, 355nm UV harmonic generator and fiber coupler) provides you optional optimized choices to guarantee your OEM LVI medical system performance.
Key Features
- Modular design, Optional models for 1064nm, 355nm, and fiber coupler
- Pulse width: 10-25ns, efficient fiber coupling
- Laser head and power supply designed with electromagnetic compatibility (EMC) safety standards
- Derived from the standard Nimma series, offering excellent stability and performance
- Automatic energy optimization
| Models | Nimma-LVI |
|---|---|
| Repetition rate | 1-40Hz |
| Pulse energy @ 1064nm | ≥400mJ |
| Pulse energy @ 355nm | ≥100mJ |
| Beam diameter | ~10mm |
| Divergence | ≤1mrad |
| Pulse width | 10-25ns |
| Energy stability (RMS) | ≤2% |
| Electrical service | 220-50/60Hz-10A |
| Cooling consumption | ≥800W（10℃ temperature difference compared to invironment) |
| Fiber coupler | Customized fiber interface design |
| Control interface | RS232 / TTL trigger |
Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
