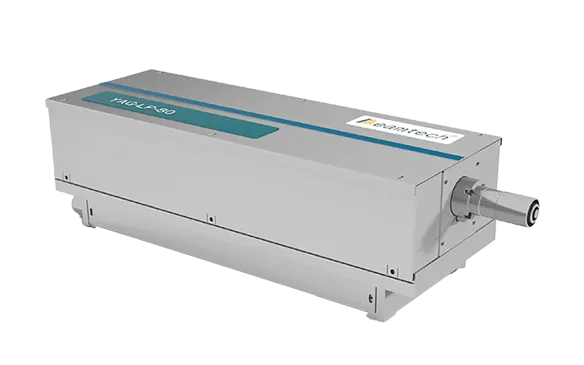

YAG-LP-80
Beamtech

YAG-LP-80 — Long-Pulse Laser

Contact for pricing
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS REACH

Long-Pulse Laser

The YAG-LP-80 is an Nd:YAG long-pulse laser with an adjustable laser pulse width ranging from 0.5ms to 300ms and a maximum energy output of 80J. It is primarily used for applications such as semiconductor heating and igniting metal powders.

Key Features

  • Maximum pulse energy: 80J@1064nm
  • Pulse width: 0.5-300ms adjustable
  • Repetition rate: 0.3-10Hz adjustable
  • High energy stability: RMS ≤3%
ModelsYAG-LP-80
Wavelength1064nm
Output couplingOptical fiber (D80)
Max pulse energy (After fiber)80J@1064nm
Energy stability (RMS)≤3%@1064nm
Repetition rate0.3-10Hz
Required cooling capacity>600W
Cooling typeAir to water, heater not required

Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.

Specification Sheet PDF — Download
No CAD drawings available for this product.
