Long-Pulse Laser

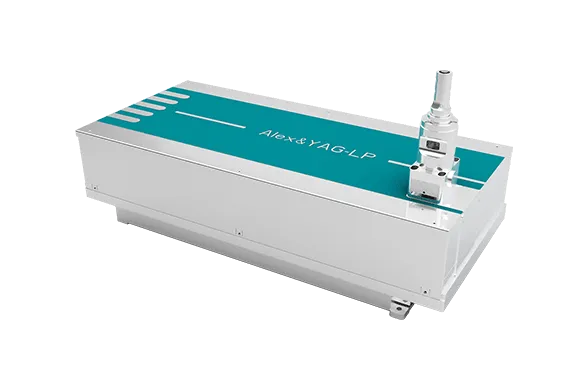

The Alex&YAG-LP laser is a two-wavelength long-pulse laser developed by Beamtech. This product was completed in the first half of 2019.

Key Features

755nm and 1064nm two-wavelength output
High output energy: 50J @ 755nm, 80J @ 1064nm
Wide adjustable pulse width range: 0.3-300ms
Engineered technology ensures high stability and reliability
A complete set of solutions, including power supply, cooling, fiber coupling, and handpieces

Models	Alex&YAG-LP-50	Alex&YAG-LP-30
Wavelength	755nm & 1064nm (single wavelength optional)	755nm & 1064nm (single wavelength optional)
Output coupling	Optical fiber	Optical fiber
Max pulse energy (after fiber) @ 755nm	50J	30J
Max pulse energy (after fiber) @ 1064nm	80J	60J
Energy stability (RMS) @ 755nm	≤5%	≤5%
Energy stability (RMS) @ 1064nm	≤3%	≤3%
Repetition rate	0.3-10Hz	0.3-10Hz
Pulse duration	0.3-300ms	0.3-300ms
Power consumption	≤3000W	≤3000W
Required cooling capacity	>1500W	>1500W
Warm-up time	<5min	<5min
Cooling type	Air to water, heater not required	Air to water, heater not required
