STC-MBS122BPOE
LBTek

CMOS Cameras STC-MBS122BPOE

STC-MBS122BPOE
$2,809.63
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

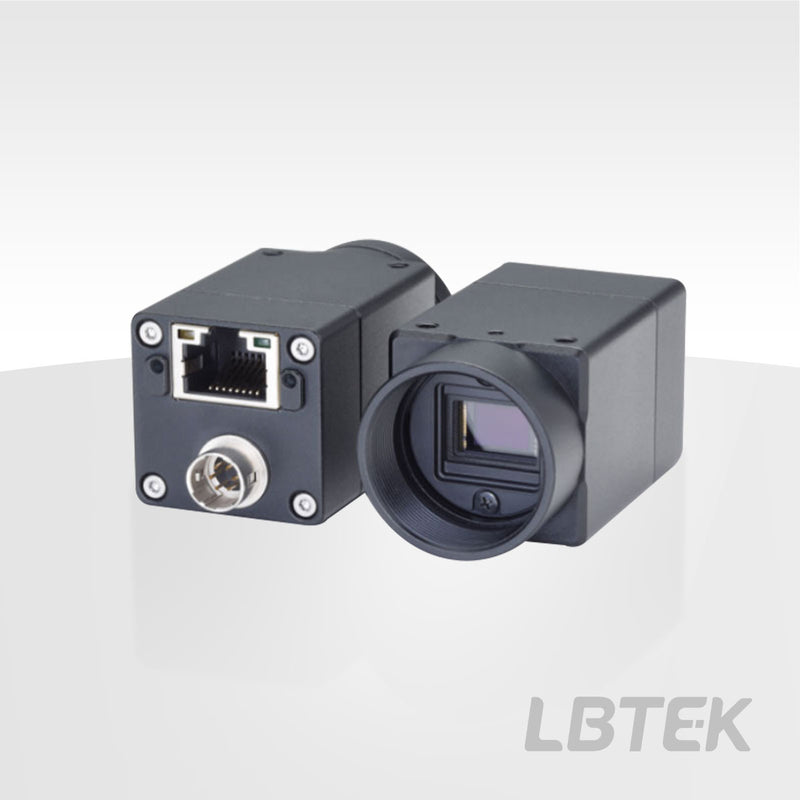

The CMOS Camera features a GigE data transfer connector, compliant with the GigE Vision 2.1 protocol, and supports Power over Ethernet (POE). The camera utilizes a high-pixel, high-frame-rate CMOS sensor, with resolutions ranging from 0.4 megapixels to 20 megapixels. Its input port features a C-Mount optical connector, which can be connected to SM1 threaded components such as SM1-CC for integration into a 30 mm coaxial system via SM1 coaxial mounting plates or SM1 lens tubes. For mounting and positioning, all four sides of the camera can serve as mounting surfaces, with the top and bottom featuring 2 and 4 M3 threaded holes, respectively.

Key Features

  • C-Mount optical connector
  • POE power supply
  • Can be integrated into 30 mm coaxial systems
  • 2 and 4 M3 threaded holes on top and bottom respectively

Application

Schematic Diagram of CMOS Camera Dimension

No specifications available for this product.

No documents available for this product.
No CAD drawings available for this product.
