CMOS Cameras STC-MCS2041POE

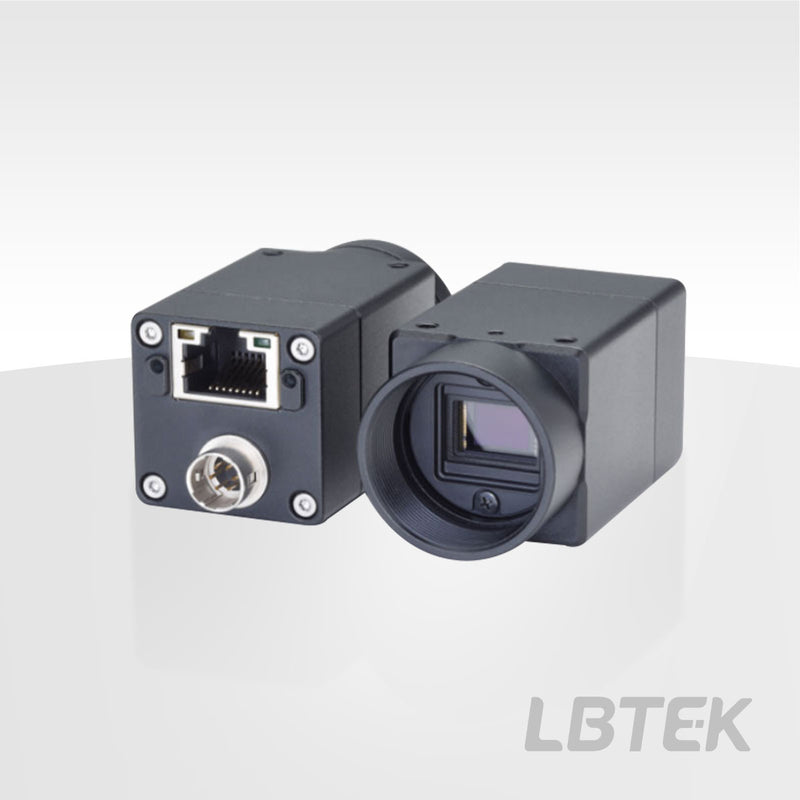

CMOS Camera — Model STC-MCS2041POE

20.4M CMOS Camera with GigE interface; 2.4 μm×2.4 μm pixel size, Rolling shutter.

Overview

The CMOS Camera features a GigE data transfer connector, compliant with the GigE Vision 2.1 protocol, and supports power over Ethernet(POE). The camera utilizes a high-pixel, high-frame-rate CMOS sensor, with resolutions ranging from 0.4 megapixels to 20 megapixels. The housing is designed by Japanese Omron Sentech, featuring high-end material selection for all components. It offers advantages such as compact size, portability, excellent sturdiness and vibration resistance, superior heat dissipation, high stability, and electromagnetic shielding. The input port is a C-Mount optical connector, for easy integration into 30 mm coaxial systems. For mounting and positioning, all four sides of the camera can serve as mounting surfaces.

Key Features

• The data transmission connector type is GigE
• Camera resolution ranges from 40W to 2000W pixels
• High-end material selection with advantages of compact size, portability, excellent sturdiness and vibration resistance, superior heat dissipation, high stability, and electromagnetic shielding
• C-Mount optical connector for easy integration into 30 mm coaxial systems
