STC-MCS43POE
LBTek

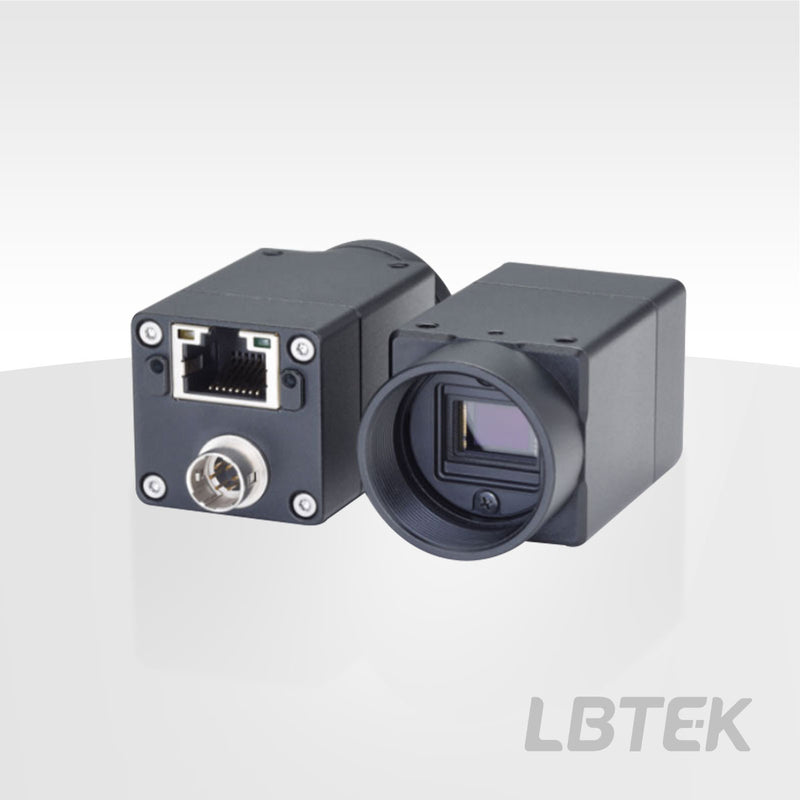

CMOS Cameras STC-MCS43POE

STC-MCS43POE
$625.20
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

The CMOS Camera features a GigE data transfer connector, compliant with the GigE Vision 2.1 protocol, and supports Power over Ethernet (POE). The camera utilizes a high-pixel, high-frame-rate CMOS sensor, with resolutions ranging from 0.4 megapixels to 20 megapixels. Its input port features a C-Mount optical connector, which can be connected to SM1 threaded components such as SM1-CC for integration into a 30 mm coaxial system via SM1 coaxial mounting plates or SM1 lens tubes. For mounting and positioning, all four sides of the camera can serve as mounting surfaces, with the top and bottom featuring 2 and 4 M3 threaded holes, respectively.

Key Features

  • C-Mount optical connector
  • POE power supply
  • Can be integrated into 30 mm coaxial systems
  • 2 and 4 M3 threaded holes on top and bottom respectively

Application

Schematic Diagram of CMOS Camera Dimension

Size 53 mm*29 mm*29 mm
Threaded hole Top (M3/2 pcs), Bottom (M3/4 pcs)
Housing Material 6061-T6 aluminum alloy
Applicable Wavelength Range 400 nm-900 nm
Effective pixels 728×544
Pixel size 6.9 μm×6.9 μm
Color Colorful
CMOS size 1/2.9''
Material 282 fps
Data Transfer Interface GigE
Shutter Mode Global Shutter
Optical Interface C Mount
Resolution 0.4M
No documents available for this product.
No CAD drawings available for this product.
