Coaxial system Ø6 mm mounting rod MOPC-5.6-P4
MOPC-5.6-P4$16.92
In Stock
Key Specifications
Diameter
6.0mm
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Coaxial system Ø6 mm mounting rod — Model MOPC-5.6-P4
✔ In Stock — Ships Today

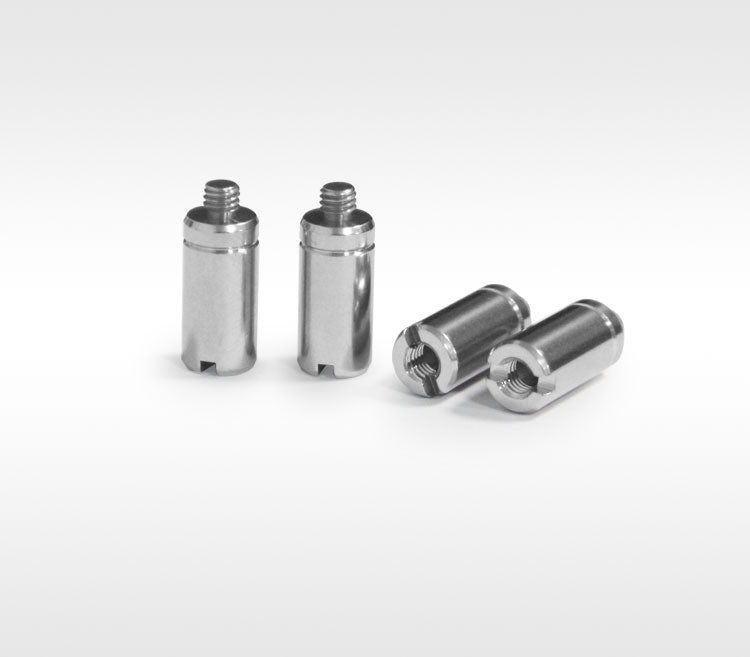

The LBTEK integrated mounting rod is made of 303 stainless steel with a diameter of Ø6 mm, compatible with 30 mm and 60 mm coaxial systems. The head of the rod features an integrated stud that cannot be disassembled, available in both metric M3 and imperial 4-40 specifications. The tail end has an M3 internal thread with a flat slot. Additionally, two lengths of 5.6 mm and 12.5 mm are available for selection.
Key Features
- Ø6mm integrated connecting rod, stud non-removable
- Head stud options: metric M3 or imperial 4-40
- Length: 5.6, 12.5 mm
- Tail features M3 internal thread with flat slot
- Compatible with coaxial systems
Application
The Ø6mm integrated connecting rod can be used for coaxial system connections or extensions.
| Diameter | 6.0 mm |
