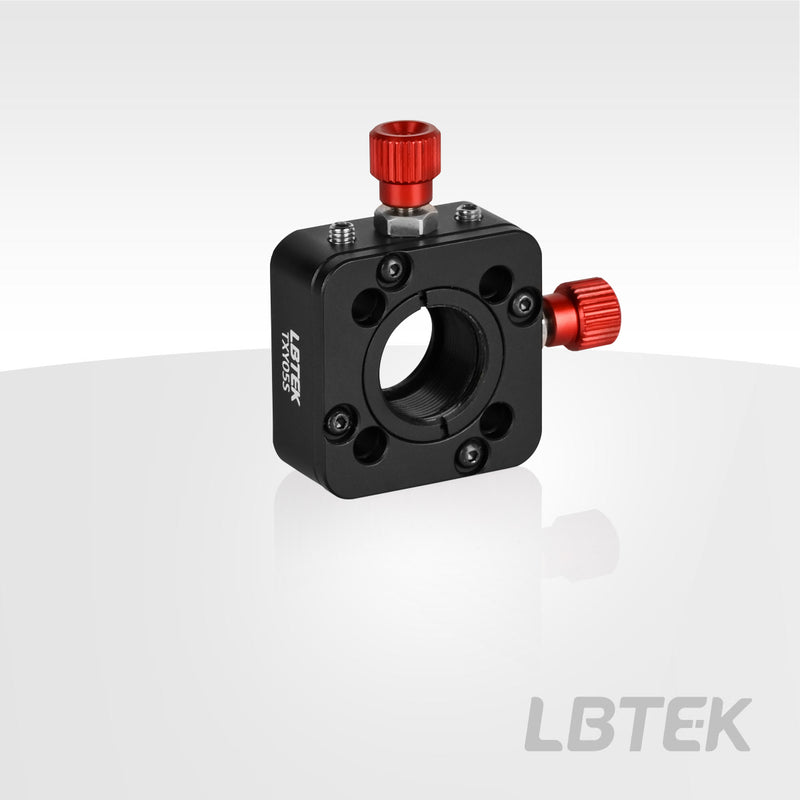

Coaxial System XY Translation Mounts TXY05S

LBTEK's 16 mm coaxial system XY displacement stage provides ±1.0 mm travel perpendicular to the optical axis of the 16 mm coaxial system. It features two adjusters, with a fine adjustment precision of 0.25 mm/revolution in the X and Y axes. The front and rear plates of the stage are stationary, while the stage itself can move along the X and Y directions. The XY movement module includes an SM05 internal thread and comes with an SM05R retaining ring for securely mounting optical components with a maximum thickness of 5.8 mm. Both the non-movable front and rear plates of the stage are compatible with 0.5-inch lens tubes for photosensitive applications.
