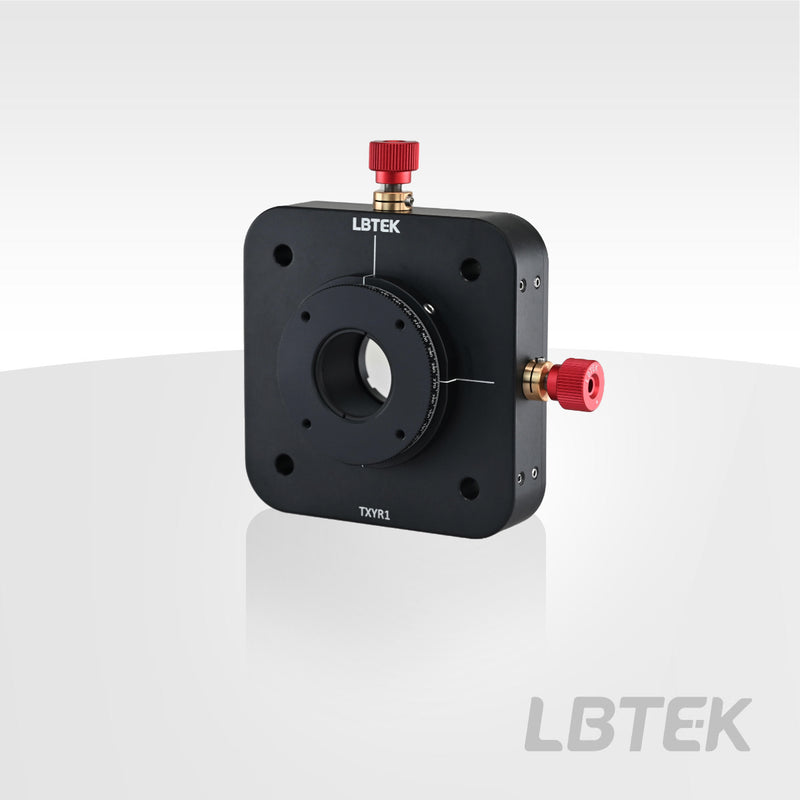

Coaxial System XY Translation Mounts TXYR1

The TXYR1 features two adjusters that allow for fine-tuning of the optical component position in the X and Y directions, with a travel range of ±2 mm. The XY translation module is equipped with SM1 internal threads and includes an SM1R retaining ring for securely mounting optical components with a maximum thickness of 20.5 mm and a diameter of Ø25.4 mm. The back of the TXYR1 has SM2 internal threads, enabling the installation of SM2 lens tubes or SM2 series adapters. Additionally, the XY translation rotation mount can rotate 360° with a scale accuracy of 1° and indicator lines spaced at 1 mm intervals. The TXYR1 can be mounted in a 60 mm coaxial system, with set screws on all sides for securing Ø6 mm coaxial system mounting rods. Furthermore, the TXYR1 has M6 threaded mounting holes on both the bottom and sides, with three threaded holes spaced 25 mm apart on the bottom edge for connecting optical posts.
