Coaxial System XY Translation Mounts TXY1S

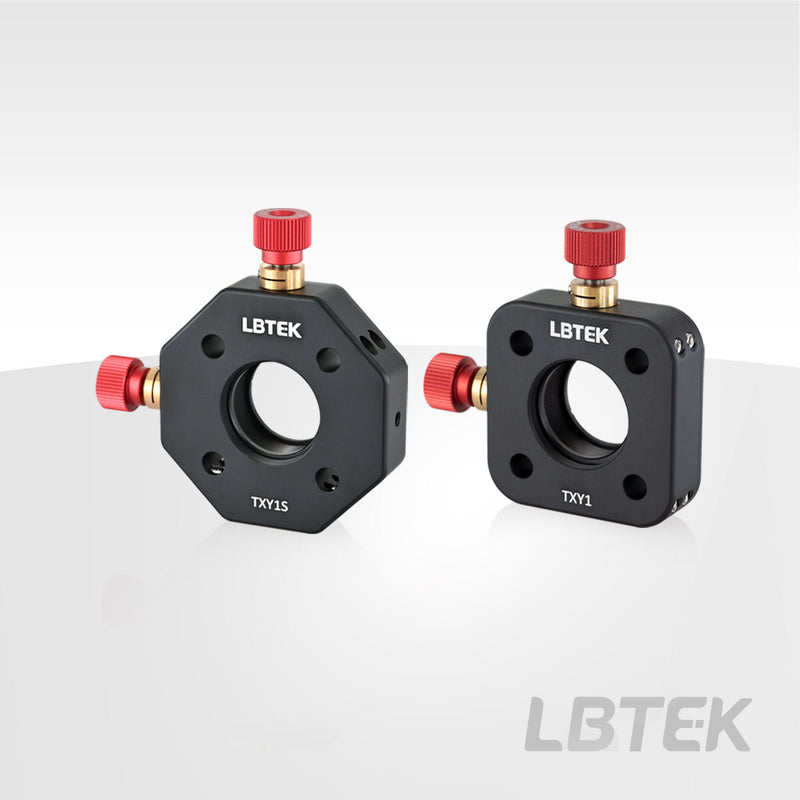

Both TXY1 and TXY1S are suitable for mounting optical components with a diameter of Ø25.4 mm. They feature two adjusters for fine-tuning the optical component's position in the X and Y directions, with a travel range of ±1 mm. The XY movement module includes SM1 internal threads and comes with an SM1R retaining ring for securely mounting optical components with a maximum thickness of 10 mm, compatible with Ø25.4 mm lens tubes. The rear panel has SM1 internal threads at the center, also compatible with Ø25.4 mm lens tubes. The TXY1 model has no threaded mounting holes at the bottom and cannot be directly connected to optical posts. However, it can be installed in a 30 mm coaxial system, with set screws on all sides for securing Ø6 mm coaxial system mounting rods. The TXY1S model features M4 threaded mounting holes on both sides at the bottom, allowing direct attachment to optical posts while remaining compatible with 30 mm coaxial systems.
