Coaxial System XY Translation Mounts TXY1QF

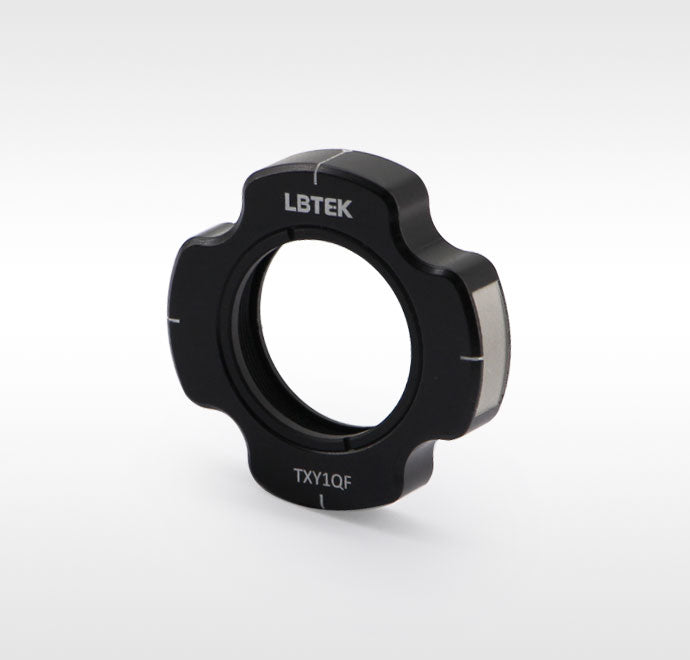

The TXY1QF Magnetic Quick-Release Plates provided by LBTEK use NdFeB magnets and 440C high-precision positioning steel balls to attach to XY translation mounts, enabling quick release of optical components within coaxial systems. It accommodates optical components with a maximum thickness of 5 mm, is compatible with SM1 lens tubes, and includes an SM1R retaining ring. This magnetic quick-release plate features laser-engraved vertical and horizontal alignment lines as well as reference markers. The alignment lines assist in positioning the quick-release plate, while the reference markers indicate the correct installation orientation—aligning these markers with the points on the mount ensures proper fixation. A blank area on the side of the magnetic quick-release plate allows for labeling installed optical components, facilitating identification among multiple quick-release plates.
