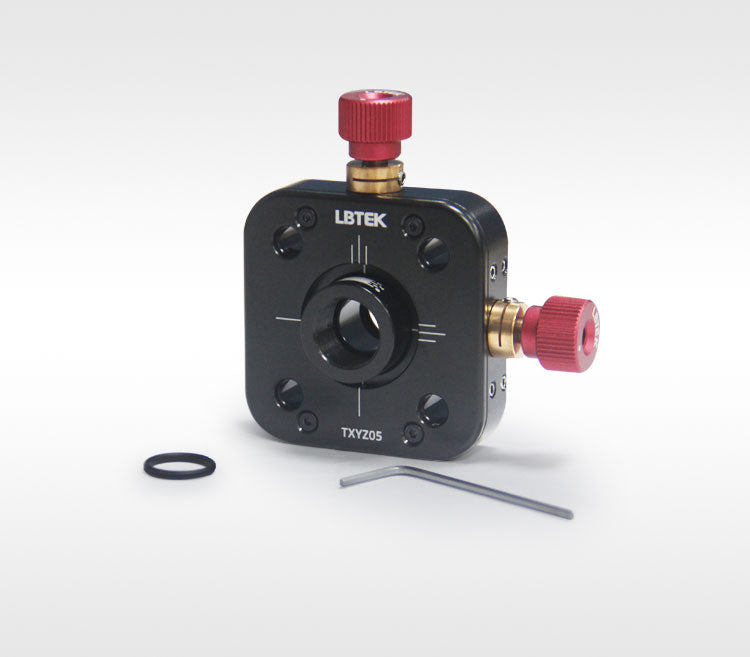

Coaxial System XYZ Translation Mounts — Model TXYZ05
✔ In Stock — Ships Today
The TXYZ05 is suitable for mounting optical components with a diameter of Ø12.7 mm, allowing fine adjustment of the component's position in the XYZ directions, with a travel range of ±1.5 mm in each axis. The center of the TXYZ05 features an SM05 internal thread and includes an SM05R retaining ring for mounting optical components. It is also compatible with Ø12.7 mm lens tubes and 30 mm cage systems. The periphery is equipped with set screws for securing Ø6 mm cage system mounting rods.
When adjusting in the Z-direction, the TXYZ05 features a graduated dial with differential markings: 0.5 mm per revolution and 10 μm per division. Additionally, the base of the TXYZ05 displacement mount is equipped with two M4 threaded holes for attaching optical rods.
Key Features
- X, Y, Z Axis Travel Range ±1.5 mm
- X, Y Axis Adjustment Precision 0.25 mm/Revolution, Z Axis Adjustment Precision 0.5 mm/Revolution (10 μm/division)
- Center SM05 Internal Thread, Suitable for Mounting Ø12.7 mm Optical Components
- 1 SM05R Retaining Ring for Securing Optical Components up to 8 mm Thick
- M4 Threaded Hole Suitable for Mounting Optical Posts
- Compatible with 30 mm coaxial systems
Application
The TXYZ05 allows for fine adjustment of optical component positions in the XYZ direction.
| Clear Aperture | 11.4 mm |
Product Family: Coaxial System XYZ Translation Mounts (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial System XYZ Translation Mounts TXYZ1 |
TXYZ1
| — | — | — | View |
| Coaxial System XYZ Translation Mounts TXYZ05S |
TXYZ05S
| — | — | — | View |
| Coaxial System XYZ Translation Mounts TXYZ05 Current |
TXYZ05
| — | — | — |
