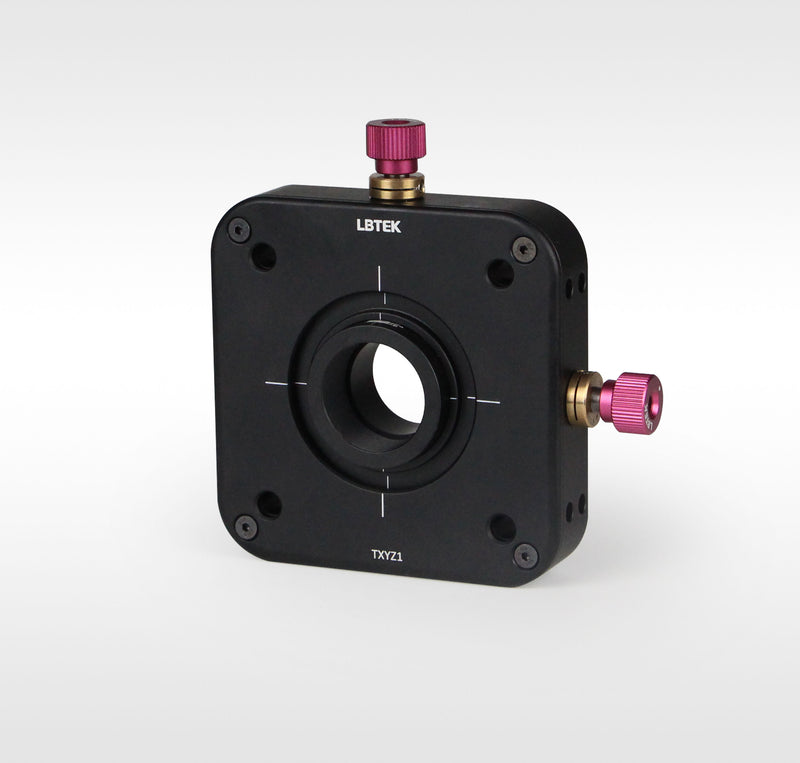

Coaxial System XYZ Translation Mounts — Model TXYZ1
✔ In Stock — Ships Today
The TXYZ1 is suitable for mounting optical components with a diameter of Ø25.4 mm, allowing fine adjustment of the optical component's position in the XYZ directions. The travel range is ±2.5 mm in the X and Y directions, and ±1.5 mm in the Z direction. The mount center features an SM1 internal thread and includes an SM1R retaining ring for mounting optical components. It is also compatible with Ø25.4 mm lens tubes and 60 mm coaxial systems. The periphery is equipped with set screws for securing Ø6 mm coaxial system mounting posts. Additionally, the TXYZ1 translation mount has two M6 threaded holes at the bottom for optical posts. Note: Avoid applying excessive force to the Z-direction adjustment ring beyond its travel range.
Key Features
- X, Y-axis travel range ±2.5 mm, Z-axis ±1.5 mm
- X, Y-axis 0.25 mm/rev, Z-axis 0.5 mm/rev
- Central SM1 internal thread, suitable for mounting Ø25.4 mm optical components
- Including 1 SM1R retaining ring for securing optical components up to 10 mm thickness
- Base with M6 threaded hole suitable for mounting optical posts
- Compatible with 60 mm coaxial systems
Application
TXYZ1 allows for fine adjustment of the optical component position in the XYZ direction.
| Clear Aperture | 23.0 mm |
Product Family: Coaxial System XYZ Translation Mounts (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial System XYZ Translation Mounts TXYZ1 Current |
TXYZ1
| — | — | — | |
| Coaxial System XYZ Translation Mounts TXYZ05S |
TXYZ05S
| — | — | — | View |
| Coaxial System XYZ Translation Mounts TXYZ05 |
TXYZ05
| — | — | — | View |
