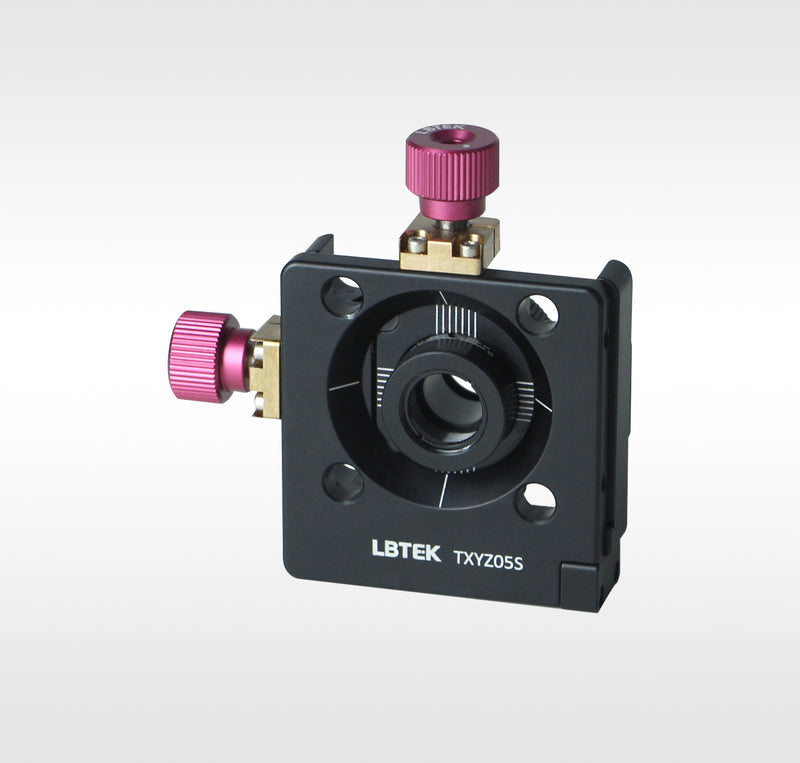

Coaxial System XYZ Translation Mounts TXYZ05S

The TXYZ05S is suitable for mounting optical components with a diameter of Ø12.7 mm. It allows fine adjustment of the optical component's position in the XYZ directions, with a travel range of ±2.0 mm in the XY directions and ±1.5 mm in the Z direction. The center of the TXYZ05S features an SM05 internal thread and includes an SM05R retaining ring for mounting optical components. It is also compatible with Ø12.7 mm lens tubes and 30 mm cage systems. The periphery is equipped with set screws for securing Ø6 mm coaxial system mounting posts. When moving in the Z direction, the TXYZ05S features a graduated dial with a differential scale—0.5 mm per revolution and 10 μm per division. Additionally, the base of the TXYZ05S adjustment mount includes an M4 threaded hole for mounting optical posts. The adjustment mount employs a dovetail structure in the XY directions, ensuring relatively independent movement along each axis and minimizing crosstalk during adjustments.
