Coaxial Z-axis thruster — Model CT-5Z
✔ In Stock — Ships Today

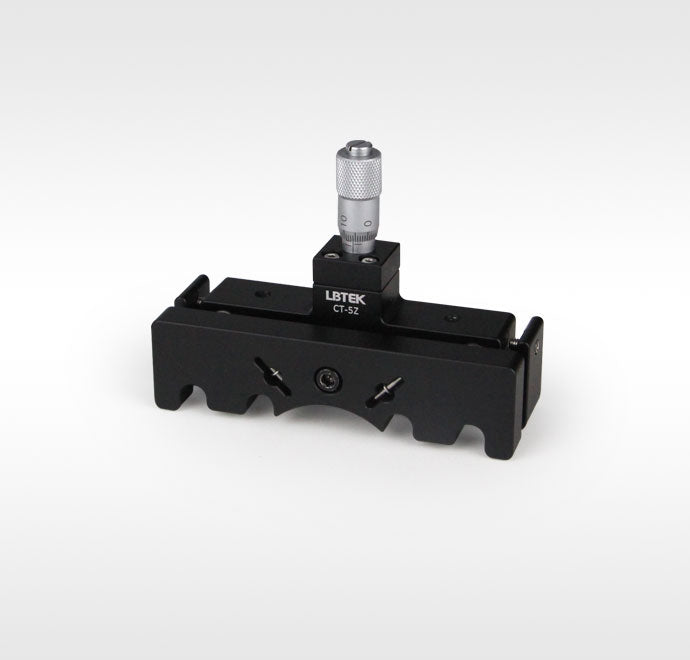

The CT-5Z coaxial plate Z-axis thruster provided by LBTEK is designed to be used with the OPM series coaxial plates, and can also be compatible with other suitable coaxial devices. This product features a wedge-shaped transmission structure, enabling right-angle transmission with a 1:1 stroke ratio without interfering with the coaxial alignment during adjustment. It offers a stroke of 5 mm, with the micrometer head's minimum graduation of 10 μm. Two springs are included for resetting the moved coaxial plate. The four flexible coaxial holes are secured using set screws and can be adjusted with a 1.5 mm hex wrench for higher efficiency and convenience.
**Note:** Due to the flexible snap-in design of this structure, the flexible arms must be inserted into the coaxial structure before tightening the locking screws. Do not tighten the screws before inserting the coaxial rod, as this may deform the flexible arms and reduce the size of the coaxial holes.
Key Features
- Compatible with 30 mm and 60 mm coaxial systems
- Comes with 5 mm travel, minimum scale 10 um
- Wedge transmission structure, achieves right-angle transmission with 1:1 travel ratio
Application
Cooperates with the coaxial plate to achieve Z-axis movement in the coaxial system.
| Surface Treatment | Black anodized |
| Main material | 6061-T6 aluminum alloy |
| stroke | 5 mm |
| Minimum Division | 10 μm |
| Hex Key Wrenches Included | Two cylindrical compression springs |
