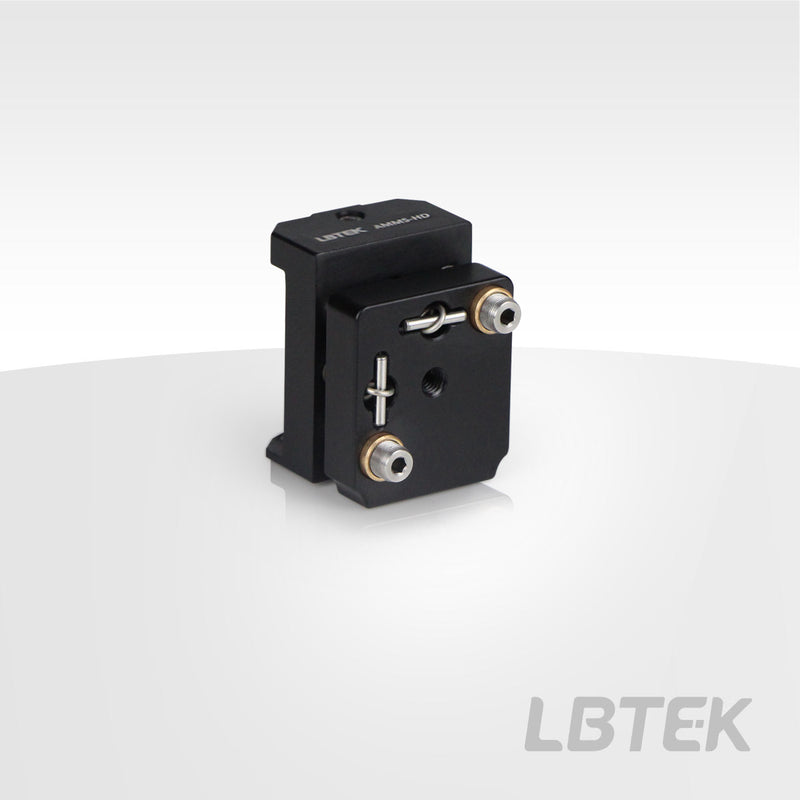

Compact Optical Mounts — Model AMMS-HD
✔ In Stock — Ships Today
The LBTEK Rectangular Optical Mounts is specially designed for 1-inch-high rectangular optical components in confined spaces. The rectangular optic can be mounted in the slot and secured with a rubber-tipped screw. The mount features M4 tapped mounting holes on the bottom and sides, allowing connection and support using 12.7 mm stainless steel optical posts or other connecting components.
Key Features
- Angle range: ±4°
- Dimensions: 25.4 mm × 33.2 mm × 27.9 mm
- Knobless adjuster, reducing space occupation
- Two M4 tapped holes on the back plate for vertical and horizontal post mounting
- Front plate features a rectangular slot for mounting rectangular optical components with height of 25.4 mm and thickness ≥3 mm
Application
The AMMS-HD Rectangular Optical Mount is used for rectangular optical components with a height of 25.4 mm.
| Resolution | 0.84 / |
Product Family: Compact Optical Mounts (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Compact Optical Mounts FMH12 |
FMH12
| — | — | — | View |
| Compact Optical Mounts FMH25 |
FMH25
| — | — | — | View |
| Compact Optical Mounts FMH25T |
FMH25T
| — | — | — | View |
| Compact Optical Mounts AMMS-M6 |
AMMS-M6
| — | — | — | View |
| Compact Optical Mounts AMMS-HD Current |
AMMS-HD
| — | — | — |
