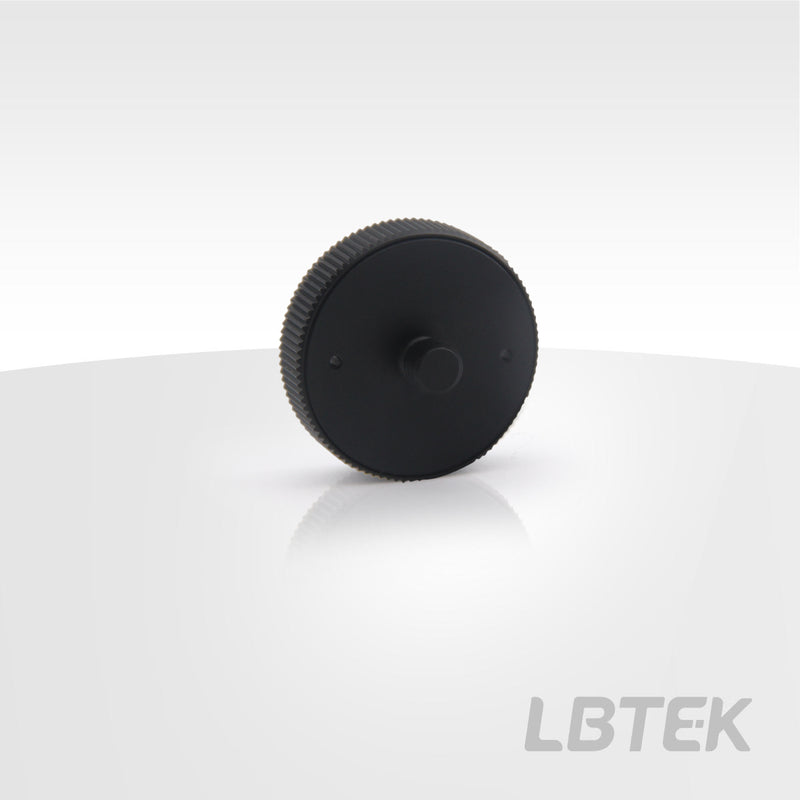

Compact Optical Mounts — Model FMH25T
✔ In Stock — Ships Today
The FMH25/FMH25T/FMH12 fixed mount can be installed on the front panel of the AMMS-A6 compact mount for use. The mount features an M6 external stud that can be screwed into the front panel of the AMMS-A6 mount. The knurled cap and nylon set screw are used to secure the optical component within the mount. The FMH25/FMH12 can accommodate mirrors with thicknesses ranging from 2.5 mm (0.10 inches) to 6.1 mm (0.24 inches), while the FMH25T can accommodate mirrors with thicknesses from 6.0 mm (0.23 inches) to 10.0 mm (0.39 inches).
Key Features
- Optical element mounting method: Threaded gland type, nylon set screw type
- Installable optical element diameter: 25.4 mm, 12.7mm
- Two thickness options available
Application
Fixed reflector mount installed on AMMS-M6 miniature optical mount
| Clear Aperture | 24.0 mm |
| Resolution | 0.84 / |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Compact Optical Mounts (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Compact Optical Mounts FMH12 |
FMH12
| — | — | — | View |
| Compact Optical Mounts FMH25 |
FMH25
| — | — | — | View |
| Compact Optical Mounts FMH25T Current |
FMH25T
| — | — | — | |
| Compact Optical Mounts AMMS-M6 |
AMMS-M6
| — | — | — | View |
| Compact Optical Mounts AMMS-HD |
AMMS-HD
| — | — | — | View |
