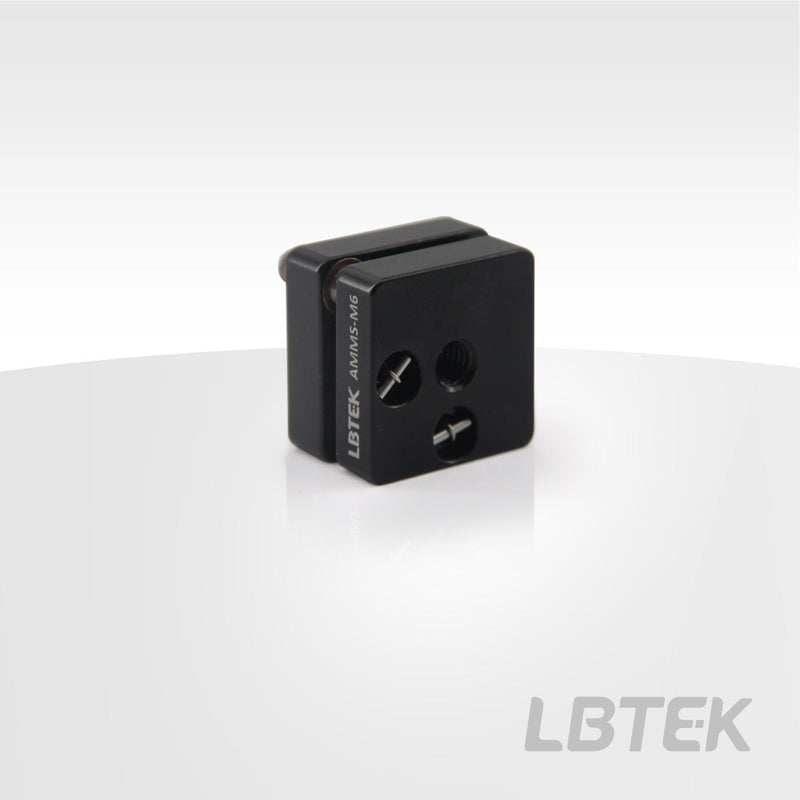

Compact Optical Mounts — Model AMMS-M6
✔ In Stock — Ships Today
The LBTEK Compact Optical Mount is designed for confined spaces and can be installed with FMH series products to hold 1-inch optical components. The mount features M4 tapped mounting holes on the bottom and sides, allowing connection and support via 12.7 mm stainless steel optical posts or other connecting accessories.
Key Features
- Angle range: ±4°
- Dimensions: 25 mm × 27.5 mm × 21 mm
- Knobless adjuster, reducing space occupation
- Two M4 tapped holes on the back plate for vertical and horizontal post mounting
- Front plate with M6 tapped hole, compatible with our FMH series fixed mounts for 1-inch optical components
Application
The AMMS-M6 Compact Optical Mount is for FMH series mirror holders and 25.4 mm optical components.
| Resolution | 0.84 / |
Product Family: Compact Optical Mounts (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Compact Optical Mounts FMH12 |
FMH12
| — | — | — | View |
| Compact Optical Mounts FMH25 |
FMH25
| — | — | — | View |
| Compact Optical Mounts FMH25T |
FMH25T
| — | — | — | View |
| Compact Optical Mounts AMMS-M6 Current |
AMMS-M6
| — | — | — | |
| Compact Optical Mounts AMMS-HD |
AMMS-HD
| — | — | — | View |
