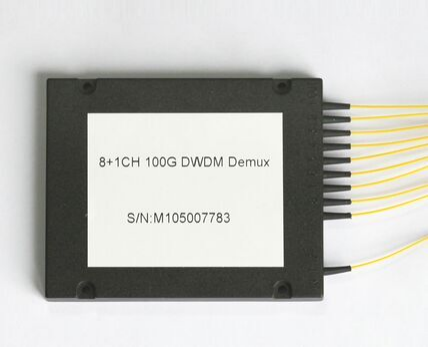

Dense wavelength division multiplexing module
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Dense Wavelength Division Multiplexers (DWDM) utilize thin film coating technology and dedicated optical design to achieve upstream and downstream light within ITU wavelengths. It provides the characteristics of ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and glue-free loop. In telecommunications network systems, it can be used for upstream or downstream optical signals.
| Models | Specification |
|---|---|
| Mux | Demux |
| Channel wavelengths (nm) | ITU 200GHz Grid |
| Center wavelength accuracy (nm) | ± 0.1 |
| Channel spacing (GHz) | 200 |
| Channel bandwidth (nm) | >0.5@0.5dB >1.0@3dB |
| Insertion loss (dB) | ≤ 5. 5 |
| Channel consistency (dB) | ≤ 1.5 |
| Channel flatness (dB) | 0.3 |
| Isolation (dB) | >30 |
| Non-adjacent | >40 |
| Insertion loss thermal stability (dB/ ℃ ) | <0.005 |
| Wavelength temperature change (nm/ ℃ ) | <0.002 |
| Polarization dependent loss (dB) | <0.15 |
| Polarization mode dispersion | <0.1 |
| Directionality dB) | >50 |
| Return loss ( dB ) | >45 |
| Rated power (mW) | 300 |
| Operating temperature ( ℃ ) | -5~+75 |
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
