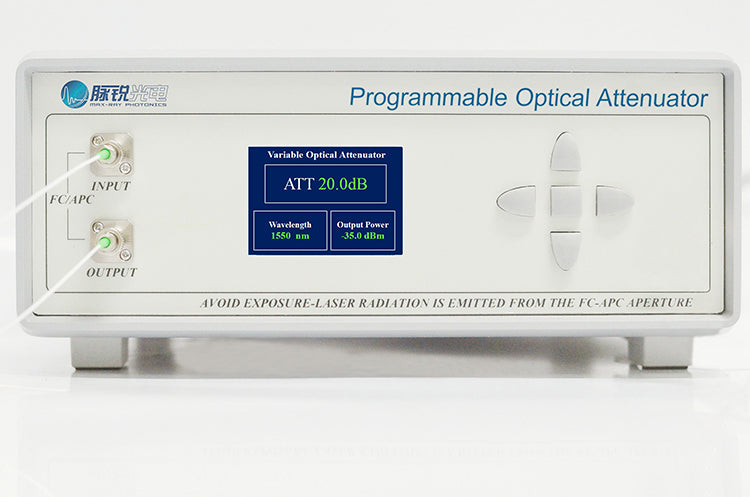

Desktop optical fiber adjustable attenuator is specially used for attenuation control of optical power in optical fiber optical circuits. It comes with power monitoring, has a large attenuation range, high adjustment accuracy, and stable power. It can be selected from normally open type or normally closed type. It is provided in desktop or modular packaging.
| Models | Specification |
|---|---|
| Wavelength range (nm) | 1064 |
| Attenuation range (dB) | 0~30 |
| Attenuation adjustment step (dB) | <0.1 |
| Attenuation accuracy (dB) | ±0.15 |
| Fader type | B( normally open Type ) |
| Input optical power (mW) | <100 |
| Insertion loss (dB) | <1.5 |
| Wavelength-dependent loss (dB) | <1 |
| Polarization dependent loss (dB) | 0.5 |
| Pigtail type | Hi-1060 |
| Fiber pigtail joint type | FC/APC |
attenuation adjustment step: @RT
fader type: shutdown When the attenuation value is zero
