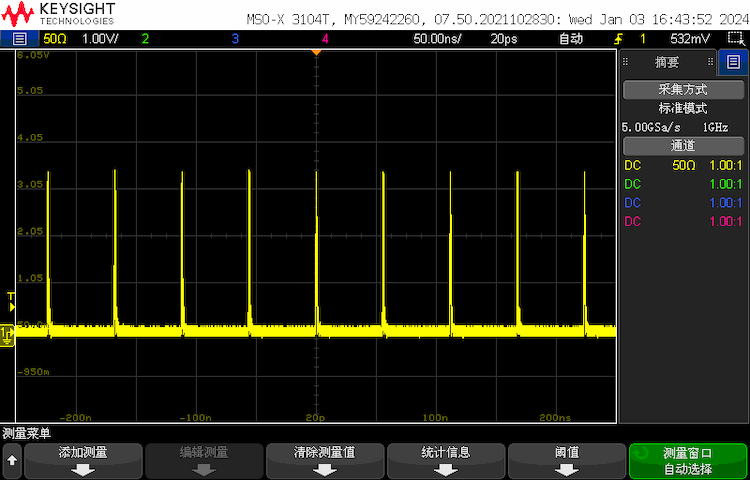

The PD03 high-speed InGaAs PIN photodetector module has a photoelectric response bandwidth of ≥3GHz, a pulse rising time of 125ps, and a working wavelength covering the wavelength of 1020 to 1650nm. The RF signal output adopts SMA interface for easy connection with RF test equipment. Suitable for optical transmission systems, ultra-fast laser pulse detection, etc.
| Models | Specification |
|---|---|
| Detector material | InGaAs |
| Operating wavelength (nm) | 800 ~1700 |
| Optical power input range (dBm) | -10 ~ 17 |
| Maximum electrical pulse output (mV) | 1500 |
| Photoelectric response | 1.0A/W ； 30mV/mW |
| Back to loss (dB) | -37 |
| Output matching impedance (Ω) | 50 |
| RF output port | SMA |
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
