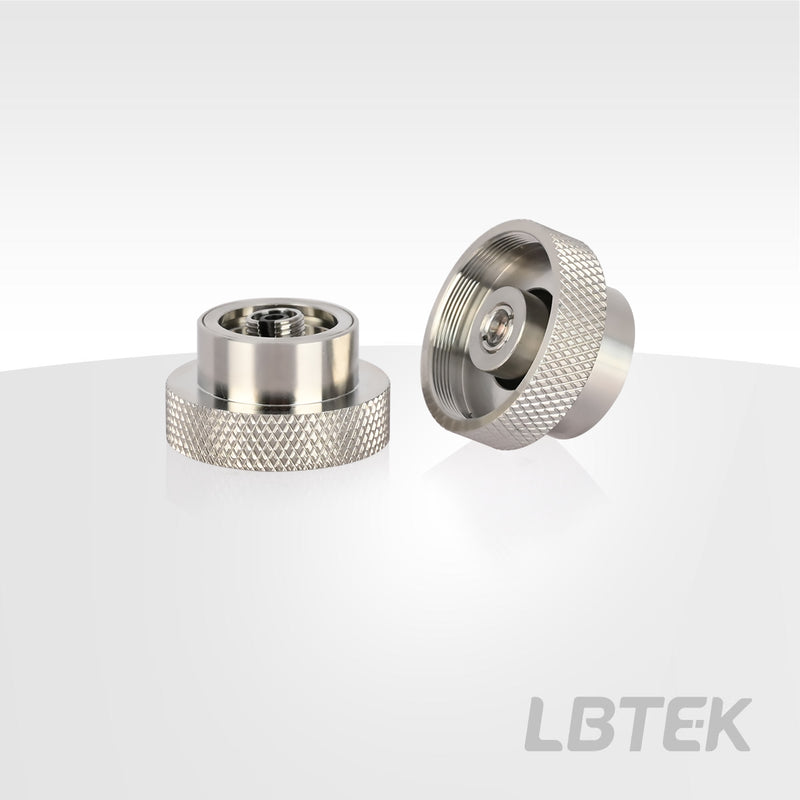

Detector coupler, suitable for avalanche detector series PDFCB-PC
PDFCB-PC$247.10
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The detector coupler provided by LBTEK features a compact structure, simplifying the coupling of fiber output to the detector. It uses a monolithic aspheric lens internally, which effectively eliminates spherical aberration while achieving extremely high transmittance. Currently, it is available in three coating wavelength ranges: 350 nm-700 nm, 600 nm-1050 nm, and 1050 nm-1700 nm, with two interface options: FC/PC and FC/APC. Each detector coupler is coated with an anti-reflection coating to reduce reflectivity. For detailed parameters, please refer to the parameter table or curve data. LBTEK offers a variety of customization services. For specific customization needs, please contact LBTEK technical support.
Key Features
- Suitable for avalanche detectors
- Single-piece aspherical design
- Interface: FC/PC, FC/APC optional
Application
The detector coupler is installed on the avalanche detector
| Anti-reflection coating reflectivity | Ravg≤0.5% |
| Attribute 785 | 600-1050 nm |
| Operating Wavelength | 600-1050 nm |
| Attribute 2103 | 2.8 mm |
| Connector Type | FC/PC |
| Attribute 2736 | Molded Aspheric |
