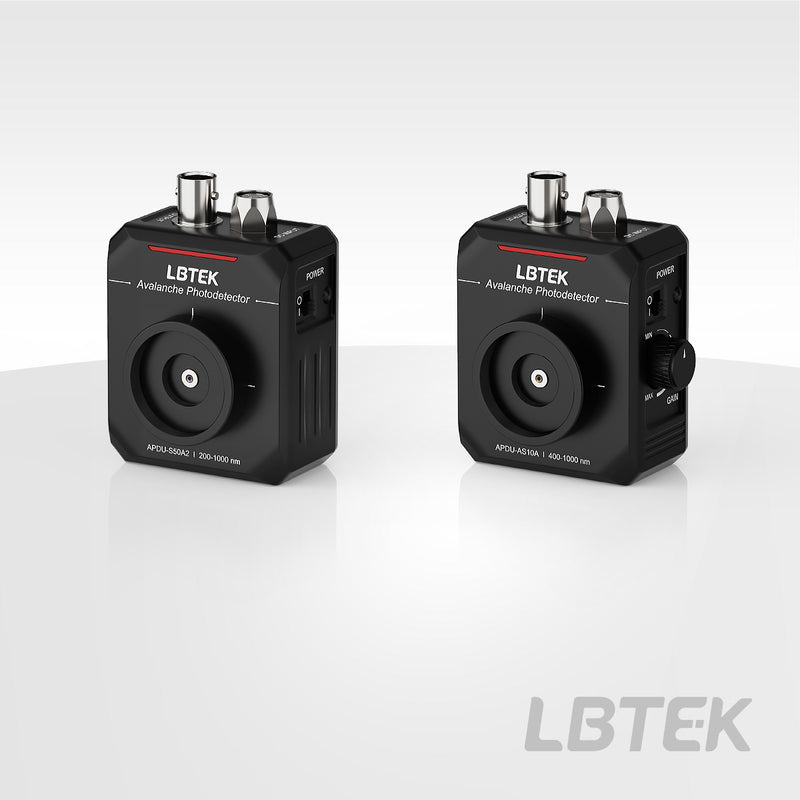

Optomechanics product APDU-S50A2
APDU-S50A2$1,372.78
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
No description available for this product.
| Detector Type | Silicon-based detector |
| Spectral response range | 200-1000 nm |
| photosensitive size | Ø1 mm |
| Active Area Diameter | 2.8 mm |
| bandwidth | DC-50 MHz |
| rise time | 7 ns |
| NEP (Noise Equivalent Power) | 0.21 pW/√Hz |
| Responsivity | 25A/W @ 600nm，M=50 |
| gain type | Fixed Gain |
| Attribute 3061 | M=50 |
| Transimpedance Gain | 50 kV/A (50 Ω ); 100 kV/A (High-Z ) |
| Noise Equivalent Power | 1.5 μW |
| Damage Threshold | 1 mW |
| Output Bias Voltage | 3.75 V |
| Operating Voltage | ±12 V |
| Operating Current | 250 mA |
| Coupling Type | DC Coupling |
| Output Connector | BNC female |
| Operating Temperature | 0~40 ℃ |
| Operating Temperature | -40~70 ℃ |
| Output Noise | ≤50 mVpp |
| Dimensional specifications | 70.8 mm×50 mm×35.8 mm |
