Dovetail 30mm coaxial system mount base CMS-10

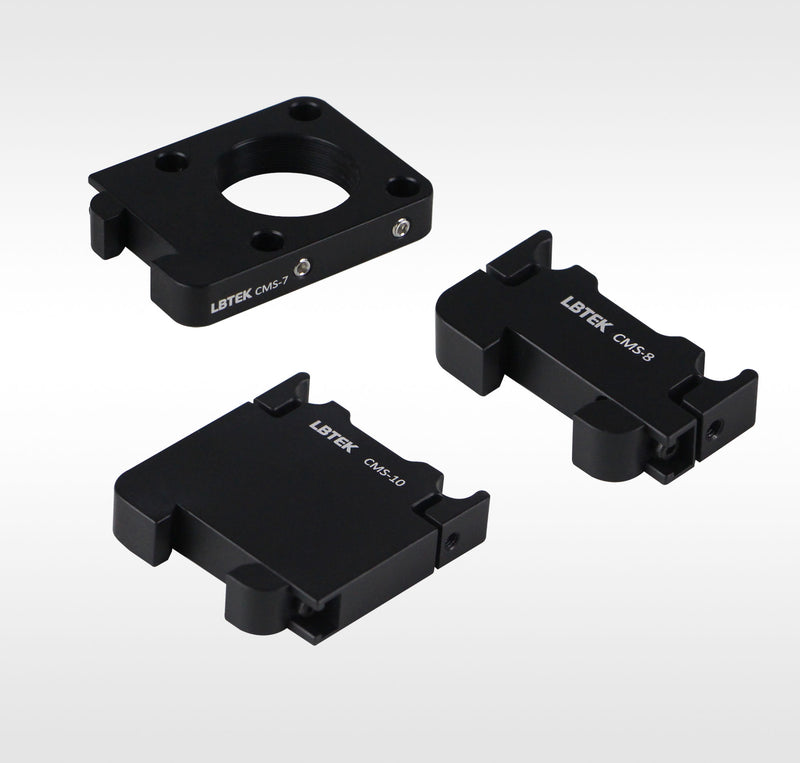

LBTEK Dovetail 30 mm Coaxial System Mount is designed for constructing 30 mm coaxial systems along dovetail rails. The dovetail clamping mechanism at the bottom allows the mount to be inserted at any position along the rail and secured by tightening the M2 hex socket screws. The coaxial plate CMS-7 features an SM1 internal thread at the center for direct mounting of optical components with a maximum diameter of 25.4 mm and thickness of 4.8 mm. It also includes four M4 set screws on the side for securing Ø6.0 mm coaxial system mounting rods. The snap-in mounts CMS-8 and CMS-10 are equipped with two flexible clamping sections, enabling quick and secure attachment of 30 mm coaxial system components. Each mount has two M3 set screws on the side for fixing coaxial system components. When installed via CMS-7/CMS-8/CMS-10, the center heights of the 30 mm coaxial system are 30 mm, 30 mm, and 50 mm, respectively.
