APD-FS10C
LBTek

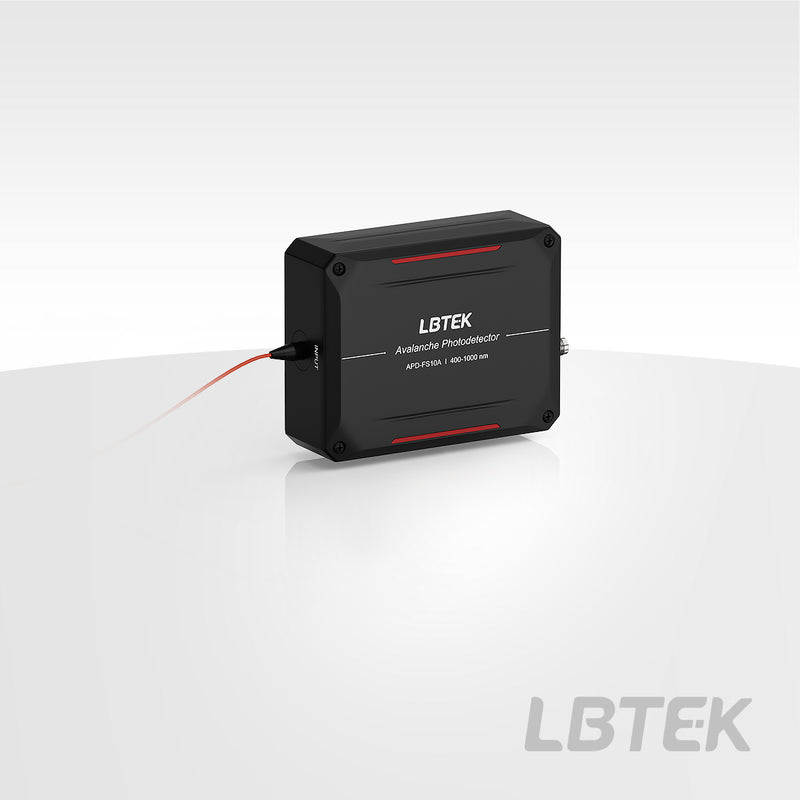

Fiber Optic Avalanche Photodetector APD-FS10C

APD-FS10C
$732.15
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH
    LBTEK's fiber-optic avalanche photodetector series covers silicon and indium gallium arsenide types, suitable for low optical power level applications in fiber optic paths. Connect the photodetector's signal interface to downstream acquisition equipment such as oscilloscopes via BNC-SMA signal cables. The mechanical housing of the detector features an M4 threaded hole at the bottom for easy mounting onto rods. Each photodetector comes with a power supply.
    Due to product appearance updates, old and new appearances will be shipped randomly

Key Features

  • Spectral Response Range: 400-1000 nm; 1000-1700 nm
  • Fixed Gain
  • Fiber Optic Input

Application

Fiber Optic Avalanche Photodetector Installation Diagram

Detector Type Indium Gallium Arsenide Detector
Spectral response range 1000-1700 nm
bandwidth DC-10 MHz
rise time 40 ns
Noise Equivalent Power 0.98 µW
NEP (Noise Equivalent Power) 0.42 pW/√Hz
Attribute 2692 Single-mode fiber with FC/APC connector
Responsivity 0.9A/W @ 1550nm
Conversion Gain 3.2×10<sup>6</sup>V/W(High-Z)； 1.6×10<sup>6</sup> V/W(50Ω )
Output Bias Voltage 3.2 V
Output Noise 18 mVpp
Coupling Type DC Coupling
Operating Voltage 9 V
Operating Current <200 mA
Output Connector SMA female
Operating Temperature -10~65 ℃
Operating Temperature -40~85 ℃
Dimensional specifications 89.5 mm×66.5 mm×28.4 mm
No documents available for this product.
No CAD drawings available for this product.
