Five-axis fiber-coupled optical component mount BFR05A

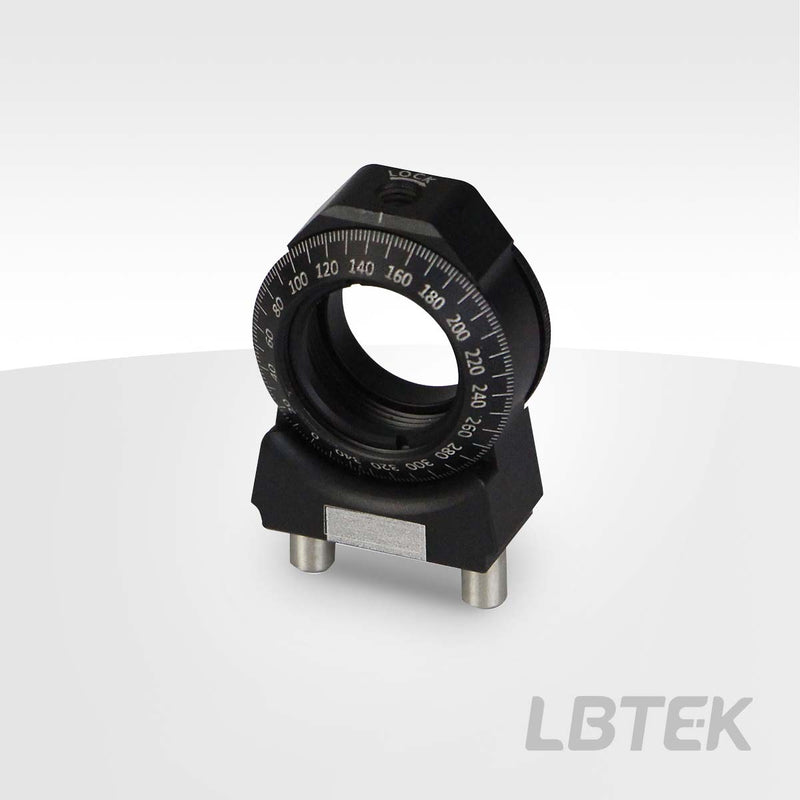

The LBTEK BFR05A is a rotational mount compatible with fiber coupler mounting bases, designed to accommodate Ø12.7 mm optical components with a clear aperture of Ø11.4 mm. It features SM05 threads for mounting optical elements, Ø1/2-inch lens tubes, and other SM05-threaded accessories. This rotational mount is suitable for installing Ø12.7 mm polarizers and waveplates, with a white engraved marking area at the bottom for labeling mounted optical components. The BFR05A rotational mount offers a scale accuracy of 2°, supports 360° continuous rotation, and provides both coarse repeatable positioning and fine adjustment. The top includes an M3 hex screw for locking the rotational mount in place, while the bottom is equipped with two 3.175 mm locating pins for installation and precise positioning.

• 360° adjustment, 2° scale precision, with angle markings every 20°
• Available accommodation of optical components with Ø12.7 mm diameter and maximum thickness of 4 mm
• Fixed with retaining ring, includes one SM05R retaining ring
