Five-axis fiber-coupled optical component mount BFRP05A

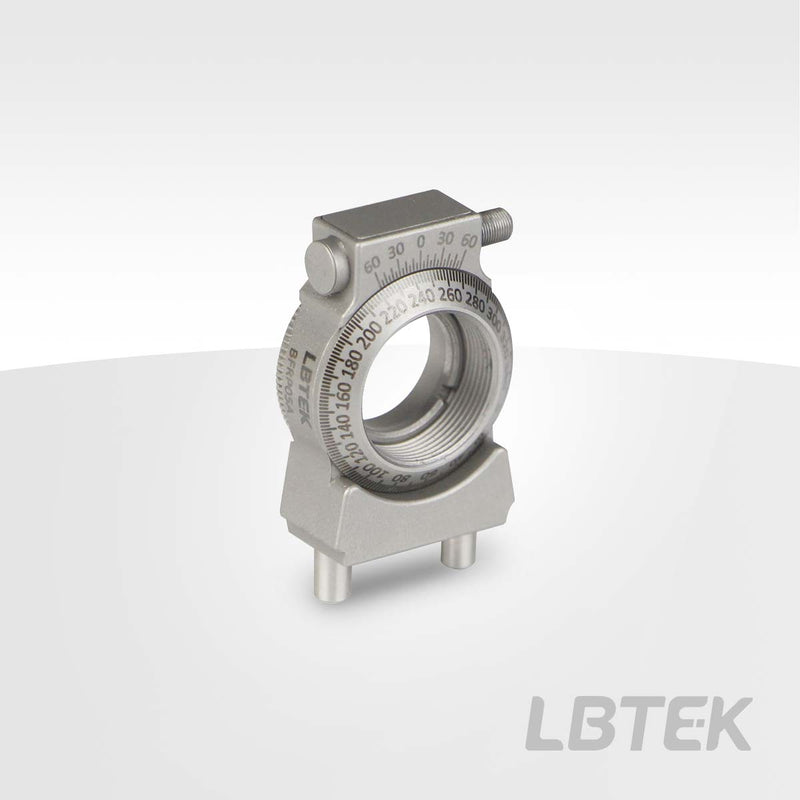

The LBTEK BFRP05A stainless steel high-precision rotation mount is designed for fiber coupling systems. The SM05-threaded rotating part of this mount features a knurled edge for 360° coarse adjustment. After securing the fine-tuning screw with a 1.3 mm hex wrench, precise positioning can be achieved by rotating the threaded subassembly at the top of the component using a 1.5 mm hex wrench, with one full rotation corresponding to approximately 1.3°. The main scale graduation accuracy is 2° per division, while the differential scale reading accuracy is 5′. It can accommodate Ø12.7 mm optical components, SM05 lens tubes, and other SM05-threaded accessories. This mount is particularly suitable for installing Ø12.7 mm polarizers and waveplates.

• 360° coarse adjustment with markings every 20°
• Main scale accuracy of 2° per division
• ±5.5° adjustment for fine adjustment screw, approximately 1.3° per full rotation
• Differential reading accuracy of 5′
• Accommodation of Ø12.7 mm optical components up to 5 mm thick available
• Central SM05 threading for SM05 adapter installation
